10112267
1/5
Product picture
PREVIEW
WISKA Order-No.
CNSORDERNO
CAD-data information
CADINFO
RAL colour
RAL
WISKA Type
TYP
Cable diameter
CD
Total length
TL
Key width 1
SW1
Key width 2
SW2
Material
CNSMAT
Pole
KP [mm²]
Protection class to EN60529
SGE
Glow wire test
GDP
Case hardening temperature
ETEMP
Packing unit (PE)
CNSQUANTITY

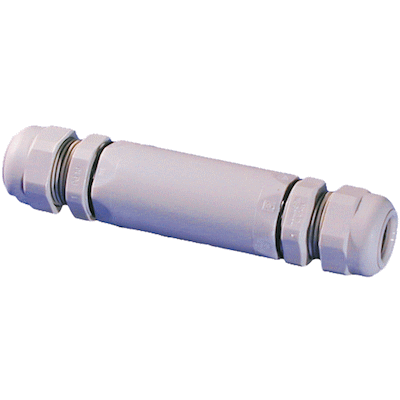

1|788/SKV 16
2|788/6/SKV 21

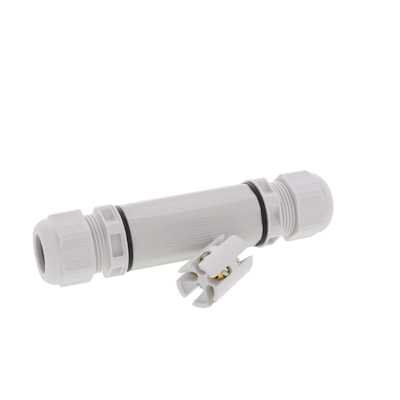

3|788/ESKV 25 LG

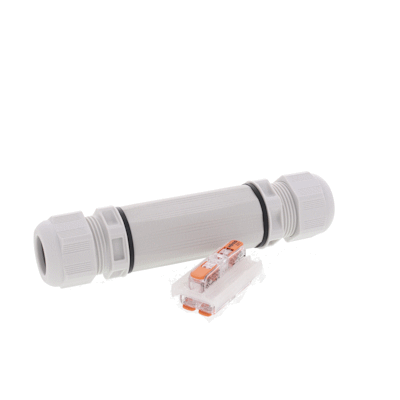

4|788/ESKV 25/221-2411 LG
5|788/ESKV 25 BK
6|788/ESKV 25/221-2411 BK
10061462
CAD data on request
RAL 7035
788/SKV 16
8.0 - 14.0
134.0
26
27
Jointing sleeve: PS-FR / Cable gland: PA
5x 2.5
IP68 (5 bar/30 min)
750 °C
-25°C to 60°C
15
10061436
CAD Daten darstellen
RAL 7035
788/6/SKV 21
10.0 - 18.0
165.0
32
33
Jointing sleeve: PS-FR / Cable gland: PA
5x 6.0
IP68 (5 bar/30 min)
750 °C
-25°C to 60°C
10
10112267
CAD Daten darstellen
RAL 7035
788/ESKV 25 LG
9.0 - 17.0
134.0
27
29
Jointing sleeve: PA / Cable gland: PA
5x 2.5
IP68 (5 bar/30 min)
750°C
-30°C to 85°C
15
10112269
CAD Daten darstellen
RAL 7035
788/ESKV 25/221-2411 LG
9.0 - 17.0
134.0
27
29
Jointing sleeve: PA / Cable gland: PA
3x 4.0
IP68 (5 bar/30 min)
750°C
-30°C to 85°C
15
10112268
CAD Daten darstellen
RAL 9005
788/ESKV 25 BK
9.0 - 17.0
134.0
27
29
Jointing sleeve: PA / Cable gland: PA
5x 2.5
IP68 (5 bar/30 min)
750°C
-30°C to 85°C
15
10112270
CAD Daten darstellen
RAL 9005
788/ESKV 25/221-2411 BK
9.0 - 17.0
134.0
27
29
Jointing sleeve: PA / Cable gland: PA
3x 4.0
IP68 (5 bar/30 min)
750°C
-30°C to 85°C
15
WISKA - 788
| 订购编码 | 10112267 |
| Shorttext | Jointing sleeve with cable gland |
| 上次修改 | 19.12.2025 07:21:14 |
| 单位 |
