6GK57631AL003AA0

IWLAN client/WLAN bridge, IP30, IEEE 802.11ax, 4xRJ45, 2xR-SMA, CLP slot

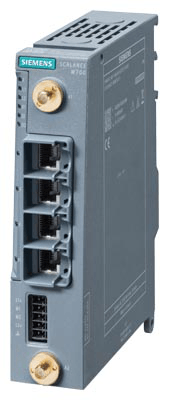

IWLAN client, SCALANCE WUM763-1, 1 radio, 2.4/5GHz 2 R-SMA connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) 4x10/100/1000 Mbps RJ45 ports, redundant 24 V DC, terminal block, IP30, -30..+60°C, CLP slot observe national approvals! CERT ID: MSAX-W1-RJ-E2-NO FCC ID: LYHMSAXV1 operation outside of USA/Israel scope of delivery: cover CLP slot, covers antenna connections, 1x terminal block SCALANCE WUM763-1 1xRadio, 2xR-SMA antenna connector, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 2.4/5 GHz, gross data rate 1201 Mbit/s, 4x10/100/1000 Mbit/s RJ45 port, redundant DC 24 V, terminal block, IP30, CLP slot, for operation outside USA/Israel. To manage the wireless connection with features specifically designed for industry (PCF/PCF-MC) from a connected device with an Industrial Ethernet connection. 1 piece.The devices are suitable for installation in the control cabinet as well as for installation indoors without a control cabinet. With the help of features specially developed for industry, secure wireless communication via PROFINET with PROFIsafe up to 150 Mbit/s is possible. Integration of industrial systems into WLAN infrastructures, cost-effective replacement of cable routes, lightweight and small design for efficient use on automated guided vehicles (AGVs). Compact and space-saving in the control cabinet. Particularly future-proof due to conformity with the globally recognized Wi-Fistandard IEEE 802.11. Predictable data traffic (deterministics) and defined response times on the radio link. PROFINET communication for real-time and redundancy requirements as well as transmission of safety-relevant data via PROFIsafe. Easy management via web server and SNMP. The extensive range of accessories includes a wide range of antennas, connectors, stripping tools, mounting accessories and cabling technology that round off the system.

195125352643

6GK5763-1AL00-3AA0

6GK57631AL003AA0

Siemens

SCALANCE WUM763-1
