60-1-3918
1/5
PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
Pin
PIN [mm]
Note
NOTE
weight
WEIGHT [g]
Link to PINET website
WEB
1
60-1-3918
steel
raw / zinc plated
50
18
2
POM pin
male leaf in raw steel
40
https://webstore.pinet-industrie.com/en/products/30371-concealed-hinge-with-removable-pin-1100-opening.html
Pinet - 6013918
| 订购编码 | 60-1-3918 |

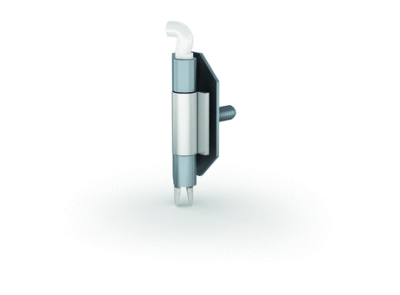

| 简短文本 | Concealed hinge with removable pin - 110° opening |
| 上次修改 | 22.02.2024 12:31:27 |
| 单位 |
