50-7-3553
1/5
PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
D
D [mm]
F
F [mm]
Note
NOTE
G
G [mm]
weight
WEIGHT [g]
S
S [mm]
Link to PINET website
WEB
1
50-7-3553
steel
raw
70
41.5
1
3.5
8.7
drilled
52
39
4.5
https://webstore.pinet-industrie.com/en/products/25549-small-hinges-with-6-knuckles.html

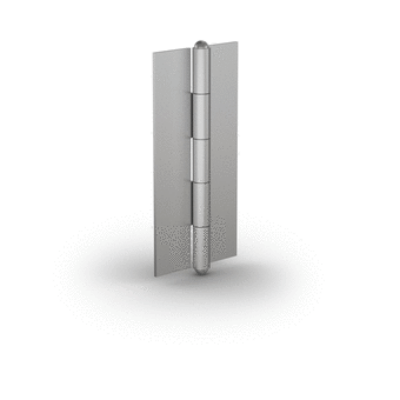

Pinet - 5073553
