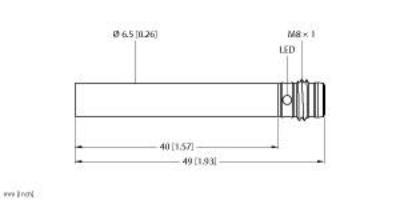

Maßzeichnung
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Diameter of front cap
DF [mm]
CAD parameter 6 (copy of SM construction)
THR
Thread length
LG [mm]
1
4612020
Inductive Sensor
Inductive Sensor, Operating voltage 10…30 VDC, Rated switching distance 1.5 mm, Flush, Smooth barrel, Ø 6.5 mm, Stainless steel, 1.4305 (AISI 303), DC 3-wire, 10…30 VDC, NO contact, PNP output, M8 x 1 male connector
4047101155464
Turck
BI1.5-EH6.5-AP6X-V1131
6.400
Glattrohr
40
Turck - 4612020
| 订购编码 | 4612020 |
| 简短文本 | Inductive Sensor |
| 上次修改 | 25.01.2024 12:11:35 |
| 单位 |
分类
