Product number of the Manufacturer
MANUID
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Type Description
MANUTYPEDESC
Preview
PREVIEW
International product number
INTNO
BUYER_PID
Manufacturer Name
MANUNAME
1
2
3
4
5
6
7
8
257064

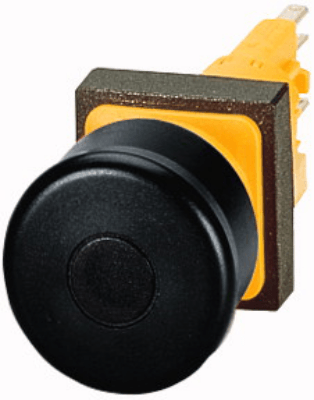

Emergency stop, illuminated pushbutton, black, maintained
Ready for use RMQ16 emergency-stop button in the front dimensions 25 x 25 mm. The pushbutton fulfils degree of protection IP65 and is approved for use world wide.
Q25LPV-S
04015082570644
257064
Eaton
072371

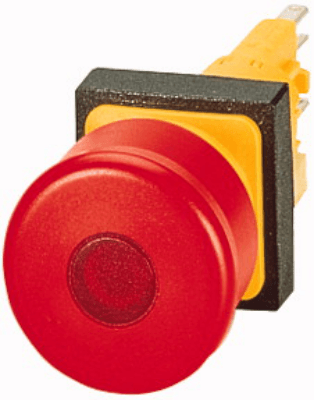

Emergency-stop pushbutton actuator, illuminated
Ready for use RMQ16 emergency-stop button in the front dimensions 25 x 25 mm. The pushbutton fulfils degree of protection IP65 and is approved for use world wide.
Q25LPV
04015080723714
072371
Eaton
216516

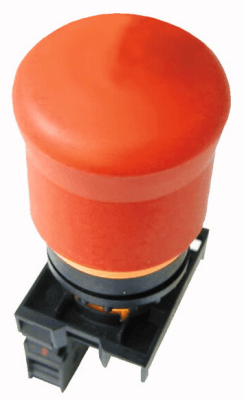

Emergency stop/off button, D=38mm, 1N/O+1N/C draw released, screw connection, front mount
New product improvement: Improved gripability from lateral ribbed effect on the key. The key fulfills protection types IP66 and IP69K and is approved for worldwide use. The modular RMQ-Titan product range contains a wide variety of models relative to the emergency stop and emergency shutdown pushbutton. There are front elements in various forms, with and without illumination, pull or rotate released with and without key.
M22-PV/K11
04015082165161
216516
Eaton
216515

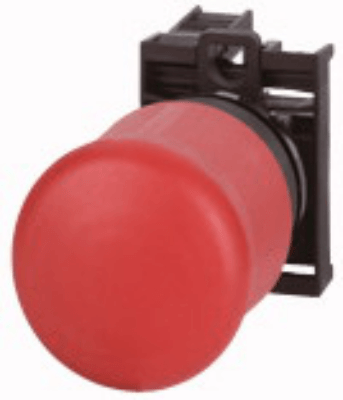

Emergency stop/off button, D=38mm, 1N/C draw released, screw connection, front mount
New product improvement: Improved gripability from lateral ribbed effect on the key. The key fulfills protection types IP66 and IP69K and is approved for worldwide use. The modular RMQ-Titan product range contains a wide variety of models relative to the emergency stop and emergency shutdown pushbutton. There are front elements in various forms, with and without illumination, pull or rotate released with and without key.
M22-PV/K01
04015082165154
216515
Eaton
121612

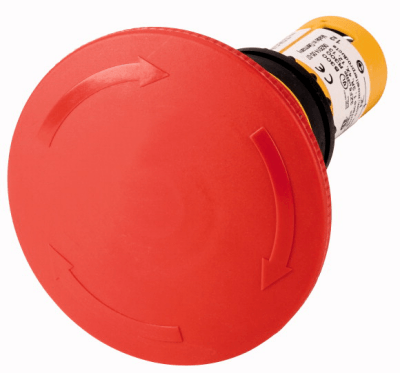

Emergency stop/off button actuator, D=60mm, 1N/C+1N/O, turn-to-release
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Turn-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Base: yellow, Red mushroom head (RAL 3000), Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Function: Turn-to-release function, Standards: IEC/EN 60947-5-5, VDE 0660
C22-PVT60P-K11
04015081194308
121612
Eaton
121613
Emergency stop/off button actuator, D=60mm, 2N/C, turn-to-release
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Turn-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Base: yellow, Red mushroom head (RAL 3000), Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 30, Function: Turn-to-release function, Standards: IEC/EN 60947-5-5, VDE 0660
C22-PVT60P-K02
04015081194315
121613
Eaton
121610

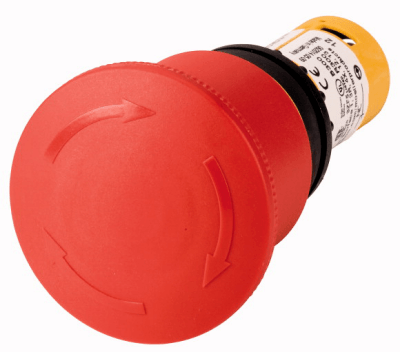

Emergency stop/off button actuator, D=45mm, 1N/C+1N/O, turn-to-release, Schraubanschluss
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 45 mm, Illumination: Non-illuminated, Turn-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Base: yellow, Red mushroom head (RAL 3000), Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Function: Turn-to-release function, Standards: IEC/EN 60947-5-5, VDE 0660
C22-PVT45P-K11
04015081194285
121610
Eaton
121611
Emergency stop/off button actuator, D=45mm, 2N/C, turn-to-release, Schraubanschluss
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 45 mm, Illumination: Non-illuminated, Turn-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Base: yellow, Red mushroom head (RAL 3000), Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 30, Function: Turn-to-release function, Standards: IEC/EN 60947-5-5, VDE 0660
C22-PVT45P-K02
04015081194292
121611
Eaton
Eaton eCAD - 44
| 订购编码 | 216515 |
| Shorttext | Emergency stop/off button, D=38mm, 1N/C draw released, screw connection, front mount |
| Longtext | New product improvement: Improved gripability from lateral ribbed effect on the key. The key fulfills protection types IP66 and IP69K and is approved for worldwide use. The modular RMQ-Titan product range contains a wide variety of models relative to the emergency stop and emergency shutdown pushbutton. There are front elements in various forms, with and without illumination, pull or rotate released with and without key. |
| 上次修改 | 14.10.2024 10:27:05 |
