3LD92243D
1/5
PREVIEW
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Alternative product number
SUPPLIERALTNO
Product number of the Manufacturer
MANUID
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
1

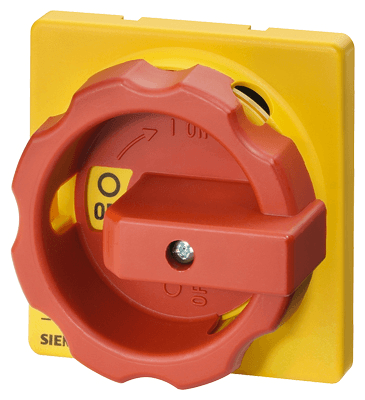

Rotary operator, selector switch red/yellow, for center-hole/front mounting
rotary operating mechanism, actuating lever Red / yellow, for center-hole Front mounting, for 25 A and 32 A, Accessory for main and emergency switching-off switch 3LD2 Main and EMERGENCY OFF switch SENTRON 3LD2 for the safe shutdown of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in machining and processing machines in mechanical and conveyor system construction, in the chemical or in the food and beverage industry. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism. Degree of protection IP65 with encapsulated enclosure for outdoor applications. Versatile and can be used worldwide thanks to international IEC, UL, CCC, and shipbuilding approvals. The 3LD main and EMERGENCY-OFF switches are available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribution boards, optionally with direct or door-coupling rotary operating mechanism. 3LD2 is also available in variants for DC applications. Main and EMERGENCY-OFF switch 3LD - End-to-end safety for users and systems.
754554733548
3LD9224-3D
3LD92243D
Siemens
rotary operating mechanism
SIEMENS - 3LD92243D
| 订购编码 | 3LD92243D |
| Shorttext | Rotary operator, selector switch red/yellow, for center-hole/front mounting |
| Longtext | rotary operating mechanism, actuating lever Red / yellow, for center-hole Front mounting, for 25 A and 32 A, Accessory for main and emergency switching-off switch 3LD2 Main and EMERGENCY OFF switch SENTRON 3LD2 for the safe shutdown of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in machining and processing machines in mechanical and conveyor system construction, in the chemical or in the food and beverage industry. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimum disconnection of 16 A of 250 A from the power supply due to the locking capability of the rotary operating mechanism. Degree of protection IP65 with encapsulated enclosure for outdoor applications. Versatile and can be used worldwide thanks to international IEC, UL, CCC, and shipbuilding approvals. The 3LD main and EMERGENCY-OFF switches are available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribution boards, optionally with direct or door-coupling rotary operating mechanism. 3LD2 is also available in variants for DC applications. Main and EMERGENCY-OFF switch 3LD - End-to-end safety for users and systems. |
| 上次修改 | 29.01.2026 18:52:27 |
| 单位 |
分类
