39-1-3631
1/5

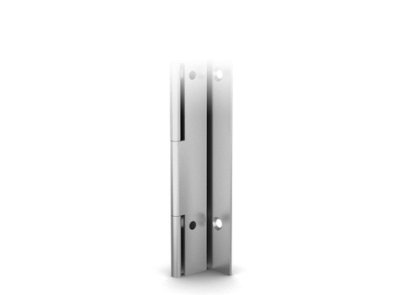

PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
D
D [mm]
E
E [mm]
Pin material
PIN_MATERIAL
F
F [mm]
H
H [mm]
Note
NOTE
G
G [mm]
weight
WEIGHT [g]
S
S [mm]
Link to PINET website
WEB
1
39-1-3631
steel
zinc plated
2000
31.5
1
2
30
304 stainless steel
7.5
20
drilled
60
860
3.5
https://webstore.pinet-industrie.com/en/products/25358-drilled-continuous-hinge-with-one-cranked-leaf.html
Pinet - 3913631
| 订购编码 | 39-1-3631 |
| 简短文本 | Drilled continuous hinge with one cranked leaf |
| 上次修改 | 22.02.2024 12:31:27 |
| 单位 |
分类
