ECLASS 13.0
27 - 电气、自动化和过程控制技术
27-25 - 接线板系统和系统组件
27-25-01 - 接线板系统
27-25-01-16 - 开关板
3062935 - AKG 4 GN
ECLASS 13.0
27 - 电气、自动化和过程控制技术
27-25 - 接线板系统和系统组件
27-25-01 - 接线板系统
27-25-01-16 - 开关板
3062935 - AKG 4 GN
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

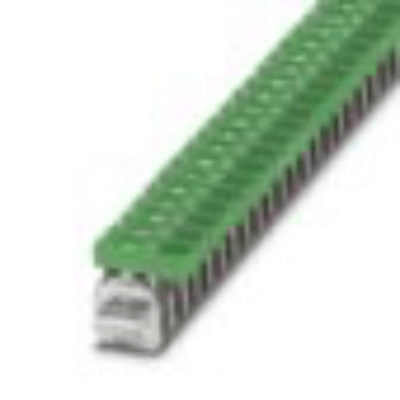

PHOENIX CONTACT 3062935

Expand Table
1/5
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
width
BAF016 [mm]
height
BAA020 [mm]
1
3062935
AKG 4 GN
Connection terminal block
Connection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: green
Phoenix Contact GmbH & Co. KG
5
4046356558327
7
23.7
显示压缩表示形式 (1 Produkt)
附件
相似件
零部件信息
Price Trend Risk
AKG 4 GN
标准代码3062935
描述AKG 4 GN
公司ECLASS 13.0
上次修改24.01.2025 18:23:31
单位
3062935,AKG 4 GN,ECLASS 13.0

CNS

CNSERPBASE Object Properties
Description longConnection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: green
Description shortConnection terminal block
GTIN-Code4046356558327
Order Number3062935
CNSPHYPROP Physical Properties

ECLASS 14.0

27-25-01-16 开关板
最大连接导体截面积（多股线）2.500
最小连接导体截面积（多股线）0.500
标称截面4
产品类型AKG 4 GN
EAN代码4046356558327
厂商产品编号3062935
制造商名称Phoenix Contact GmbH & Co. KG
附加链接地址http://www.phoenixcontact.com/product/3062935
每极功率损耗，取决于电流 [PlIp]1.020
制造商产品说明Connection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: green
制造商产品名称Connection terminal block
额定电压（直流）300
制造商通用标识号4063151
最小导体横截面（带套圈的软导线，不带塑料套）0.500
最大导体横截面（带套圈的软导线，不带塑料套）6
最小导体横截面（软线，带塑料套圈的套管）0.500
最大导体横截面（软线，带塑料套圈的套管）6
制造商 URIwww.phoenixcontact.com
提供混合连接技术No
可直接插入连接No
最小剥离长度16
最大剥线长度16
额定电压（交流）300
额定截面下的额定电流 [In]41
最大导体横截面时的额定电流 [In41
执行类型 (1)Screw connection
执行类型 (2)Screw connection
可提供混合驱动类型No
高度23.7
颜色green
深度23.6
连接说明Screw connection
绝缘材料的可燃性等级（根据UL 94)V2
绝缘材料PA
移动最大导体横截面4
固定最大导体横截面6
移动最小导体横截面0.500
固定最小导体横截面0.500

ECLASS 13.0

27-25-01-16 开关板
适合用于Flat rail
适用于条形导体接头No
适用于球型导体接头No
适用于扇形导体接头No
最大连接导体截面积（多股线）2.500
最大母线宽度10
最大母线厚度6
最小连接导体截面积（多股线）0.500
最小母线宽度6
最小母线厚度3
nominal cross section4
Product typeAKG 4 GN
EAN代码4046356558327
厂商产品编号3062935
制造商名称Phoenix Contact GmbH & Co. KG
address of additional linkhttp://www.phoenixcontact.com/product/3062935
Power loss per pole, current-dependent [PlIp]1.020
Manufacturer product descriptionConnection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: green
Manufacturer product designationConnection terminal block
Rated voltage (at DC)300
GLN of manufacturer4063151
min. conductor cross-section (flexible wire with ferrule without plastic collar)0.500
max. conductor cross-section (flexible wire with ferrule without plastic collar)6
min. conductor cross-section (flexible wire with ferrule with plastic collar)0.500
max. conductor cross-section (flexible wire with ferrule with plastic collar)6
URI of manufacturerwww.phoenixcontact.com
hybrid connection technology availableNo
direct plug-in connection possibleNo
min. stripping length16
max. stripping length16
rated voltage (at AC)300
rated current at nominal cross-section [In]41
rated current at max. conductor cross-section [In41
type of actuation (1)Screw connection
type of actuation (2)Screw connection
hybrid type of actuation availableNo
高度23.7
颜色green
深度23.6
连接说明Screw connection
绝缘材料的可燃性等级（根据UL 94)V2
绝缘材料PA
移动最大导体横截面4
固定最大导体横截面6
移动最小导体横截面0.500
固定最小导体横截面0.500
宽度7

ETIM 9.0

EC000001 Busbar terminal
Suitable forFlat rail
Suitable for strip conductor connectionNo
Suitable for round conductor connectionNo
Suitable for sector conductor connectionNo
Busbar width10
Busbar thickness6
Width clamp7
