2961037 - REL-MR-G 24/1

PHOENIX CONTACT

...

Niederspannungs-Schalttechnik

Relais und Sockel

Schaltrelais

2961037 - REL-MR-G 24/1

PHOENIX CONTACT 2961037

Expand Table

1/5

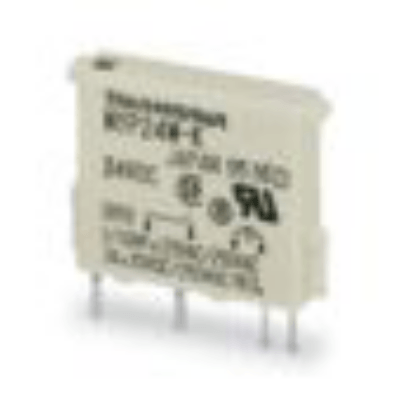

Produktbild

PREVIEW

Artikelnummer des Herstellers

MANUID

Herstellertypbezeichnung

MANUTYPEDESC

Kurzbeschreibung

DESCSHORT

Langbeschreibung

DESCLONG

Internationale Artikelnummer

INTNO

Name des Herstellers

MANUNAME

Breite

BAF016 [mm]

Höhe

BAA020 [mm]

Tiefe

BAB577 [mm]

Zertifikat/Zulassung

BAB392

Anwendungsnorm

AAP798

2961037

REL-MR-G 24/1

Einzelrelais

Steckbares Ersatz-Miniaturrelais, 1 Schließer, Eingangsspannung 24 V DC

4017918087074

Phoenix Contact GmbH & Co. KG

22.9

17.0

EAC

DIN VDE 0110, IEC 255/DIN VDE 0435 (in relevant parts)

显示压缩表示形式 (1 Produkt)

订购编码	2961037
Shorttext	Einzelrelais
Longtext	Steckbares Ersatz-Miniaturrelais, 1 Schließer, Eingangsspannung 24 V DC
上次修改	05.06.2026 18:51:46
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85364190
Description long	Steckbares Ersatz-Miniaturrelais, 1 Schließer, Eingangsspannung 24 V DC
Description short	Einzelrelais
GTIN-Code	4017918087074
Order Number	2961037

ECLASS 14.0

27-37-16-01 标准全有或全无继电器

产品类型	REL-MR-G 24/1
EAN代码	4017918087074
厂商产品编号	2961037
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	DIN VDE 0110, IEC 255/DIN VDE 0435 (in relevant parts)
附加链接地址	http://www.phoenixcontact.com/product/2961037
功率损耗规格的额定电流 [In］	3 A
每极功率损耗，取决于电流 [PlIp]	0.120 W
制造商产品说明	Steckbares Ersatz-Miniaturrelais, 1 Schließer, Eingangsspannung 24 V DC
制造商产品名称	Einzelrelais
制造商通用标识号	4063151
制造商 URI	www.phoenixcontact.com
损耗功率	0.120 W
通过认证	EAC

ECLASS 13.0

27-37-16-01 标准全有或全无继电器

切换触点的类型	Doppelkontakt
最小额定控制电压Us（直流）	19.200 V
接触涂层的材料	Gold
标称电流	0.005 A
material of contact insert	Kunststoff
Contact material	AgNi
Product type	REL-MR-G 24/1
EAN代码	4017918087074
厂商产品编号	2961037
制造商名称	Phoenix Contact GmbH & Co. KG
断开触点数量	0
转换器数量	0
闭合触点数量	1
使用规范	DIN VDE 0110, IEC 255/DIN VDE 0435 (in relevant parts)
address of additional link	http://www.phoenixcontact.com/product/2961037
Rated current [In] for the power loss specification	3 A
Power loss per pole, current-dependent [PlIp]	0.120 W
Manufacturer product description	Steckbares Ersatz-Miniaturrelais, 1 Schließer, Eingangsspannung 24 V DC
Manufacturer product designation	Einzelrelais
GLN of manufacturer	4063151
URI of manufacturer	www.phoenixcontact.com
高度	22.9 mm
损耗功率	0.120 W
通过认证	EAC
深度	17.0 mm
传动及功能	monostabil
传动极性说明	ungepolt
操纵方法	DC
带插槽的整体设备	Nein
LED显示	Nein
可拆端子	Nein
触点，强制进行	Nein
宽度	5 mm

ETIM 10.0

EC001437 Switching relay

Type of switch contact	Doppelkontakt
Rated control supply voltage DC	19.200 V
Material of contact surface	Gold
Nominal current	0.005 A
Material of contact insert	Kunststoff
Material contact	AgNi
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Height	22.9 mm
Depth	17.0 mm
Drive, switching attitude	monostabil
Drive, polarization	ungepolt
Voltage type for actuating	DC
Complete with socket	Nein
With LED indication	Nein
With detachable clamps	Nein
With forced-guided contacts	Nein
Width	5 mm

ETIM 9.0

EC001437 Switching relay

Type of switch contact	Doppelkontakt
Rated control supply voltage DC	19.200 V
Material of contact surface	Gold
Nominal current	0.005 A
Material of contact insert	Kunststoff
Material contact	AgNi
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Height	22.9 mm
Depth	17.0 mm
Drive, switching attitude	monostabil
Drive, polarization	ungepolt
Voltage type for actuating	DC
Complete with socket	Nein
With LED indication	Nein
With detachable clamps	Nein
With forced-guided contacts	Nein
Width	5 mm
