27-37-09-05 - 电动机联合启动器

2909569 - ELR H5-IS-PT- 24DC/500AC-3-P

27-37-09-05 - 电动机联合启动器

2909569 - ELR H5-IS-PT- 24DC/500AC-3-P

PHOENIX CONTACT 2909569

Expand Table

1/5

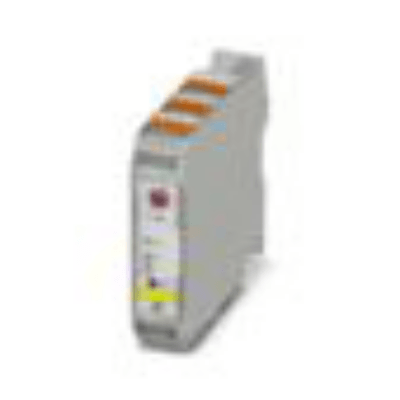

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

width

BAF016 [mm]

height

BAA020 [mm]

2909569

ELR H5-IS-PT- 24DC/500AC-3-P

Hybrid motor starter

Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop, Modular; input: 24 V DC; output: 3~, 500 V AC, 3 A; connection method: Push-in connection

Phoenix Contact GmbH & Co. KG

4055626426266

22.6

106.56

显示压缩表示形式 (1 Produkt)

订购编码	2909569
Shorttext	Hybrid motor starter
Longtext	Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop, Modular; input: 24 V DC; output: 3~, 500 V AC, 3 A; connection method: Push-in connection
上次修改	24.01.2025 18:32:41
单位

分类

CNS

CNSERPBASE Object Properties

Description long	Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop, Modular; input: 24 V DC; output: 3~, 500 V AC, 3 A; connection method: Push-in connection
Description short	Hybrid motor starter
GTIN-Code	4055626426266
Order Number	2909569

CNSPHYPROP Physical Properties

ECLASS 14.0

27-37-09-05 电动机联合启动器

适合用于安装在标准导轨上	Yes
绝缘功能	No
协调类型	1
材料声明	No
产品类型	ELR H5-IS-PT- 24DC/500AC-3-P
EAN代码	4055626426266
厂商产品编号	2909569
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	EN 60947-1, EN 60947-4-2, EN ISO 13849, IEC 62061, IEC 61508
附加链接地址	http://www.phoenixcontact.com/product/2909569
制造商产品说明	Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
制造商产品名称	Hybrid motor starter
制造商通用标识号	4063151
损耗功率	4.100
通过认证	IECEE CB Scheme
功能	electronic switch
总线功能	No

27-02-40-02 发动机起动机

ECLASS 13.0

27-37-09-05 电动机联合启动器

电气联接的设计（用于辅助/控制电流电路）	Spring pulley connection
释放等级	CLASS 10
额定工作电流Ie	3
额定工作电流Ie（AC-3，400V）	3
最大值-过载解扣调整范围	3
适合用于安装在标准导轨上	Yes
短路释放（是/否）	No
最小额定控制电压Us（直流）	19.200
绝缘功能	No
最小设定范围-过载释放触发器	0.180
type of coordination	1
material declaration	No
Product type	ELR H5-IS-PT- 24DC/500AC-3-P
EAN代码	4055626426266
厂商产品编号	2909569
制造商名称	Phoenix Contact GmbH & Co. KG
辅助接点开启数量	1
辅助接点开关数量	1
控制点数量	1
使用规范	EN 60947-1, EN 60947-4-2, EN ISO 13849, IEC 62061, IEC 61508
address of additional link	http://www.phoenixcontact.com/product/2909569
Kind of motor starter	Two-way starter
Temperature compensated overload protection	No
Manufacturer product description	Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
Manufacturer product designation	Hybrid motor starter
GLN of manufacturer	4063151
高度	106.56
损耗功率	4.100
通过认证	IECEE CB Scheme
深度	114
操纵方法	DC
连接说明	Spring pulley connection
功能	electronic switch
可装配承重轨	Yes
可以外部复位	Yes
总线功能	No
适用于“紧急关闭”	Yes
宽度	22.6
保护方式IP	IP20

27-02-40-02 发动机起动机

ETIM 10.0

EC001037 Motor starter/motor starter combination

Type of electrical connection for auxiliary- and control current circuit	Spring pulley connection
Release class	CLASS 10
Rated operation current Ie	3
Rated operation current at AC-3, 400 V	3
Overload release current setting	3
With short-circuit release	No
Rated control supply voltage DC	19.200
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of command positions	1
Type of motor starter	Two-way starter
Temperature compensated overload protection	No
Height	106.56
Depth	114
Voltage type for actuating	DC
Type of electrical connection of main circuit	Spring pulley connection
Rail mounting possible	Yes
External reset possible	Yes
Suitable for emergency stop	Yes
Width	22.6
Degree of protection (IP)	IP20

ETIM 9.0

EC001037 Motor starter/motor starter combination

Type of electrical connection for auxiliary- and control current circuit	Spring pulley connection
Release class	CLASS 10
Rated operation current Ie	3
Rated operation current at AC-3, 400 V	3
Overload release current setting	3
With short-circuit release	No
Rated control supply voltage DC	19.200
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of command positions	1
Type of motor starter	Two-way starter
Temperature compensated overload protection	No
Height	106.56
Depth	114
Voltage type for actuating	DC
Type of electrical connection of main circuit	Spring pulley connection
Rail mounting possible	Yes
External reset possible	Yes
Suitable for emergency stop	Yes
Width	22.6
Degree of protection (IP)	IP20
