PHOENIX CONTACT 2902317
1/5
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
width
BAF016 [mm]
height
BAA020 [mm]
1
2902317

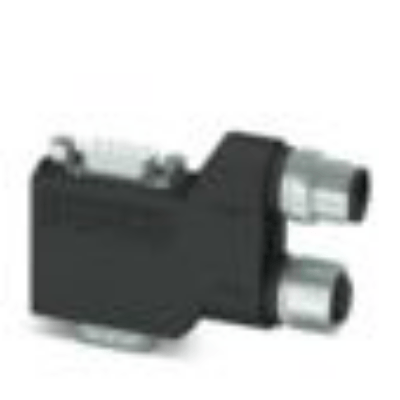

SUBCON-PLUS-PROFIB/90/PG/M12
D-SUB bus connector
D-SUB plug, 9-pos., pin, with PG-D-SUB socket, assignment: 3, 5, 6, 8; two M12 cable glands (B-coded) 90° cable entry. Bus system: PROFIBUS DP up to 12 Mbps. Termination resistor via separate M12 terminator.
Phoenix Contact GmbH & Co. KG
59
4046356654982
16
40
ECLASS 13.0 - 2902317
| 订购编码 | 2902317 |
| Shorttext | D-SUB bus connector |
| Longtext | D-SUB plug, 9-pos., pin, with PG-D-SUB socket, assignment: 3, 5, 6, 8; two M12 cable glands (B-coded) 90° cable entry. Bus system: PROFIBUS DP up to 12 Mbps. Termination resistor via separate M12 terminator. |
| 上次修改 | 14.01.2025 06:41:05 |
| 单位 |
