2753940000 - S2C 2.5 BL
Weidmüller
Terminal block systems
Feed-through terminal block
2753940000 - S2C 2.5 BL
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 2753940000

Expand Table
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
nominal cross section
AAI844 [mm²]
Max. line cross section, flexible
BAC676 [mm²]
rated current
AAF726 [A]
1
2753940000
S2C 2.5 BL

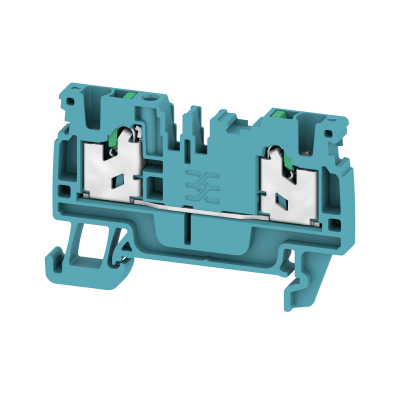

Feed-through terminal block, SNAP IN, blue, 2.5 mm², 24 A, 800 V, Number of connections: 2
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
4064675267638
Weidmueller Group
2.500
2.500
24
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
附件
Request for quote (RFQ)
Weidmüller - 2753940000
订购编码2753940000
ShorttextFeed-through terminal block, SNAP IN, blue, 2.5 mm², 24 A, 800 V, Number of connections: 2
LongtextTerminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
上次修改27.02.2026 13:26:18
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Description longTerminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
Description shortFeed-through terminal block, SNAP IN, blue, 2.5 mm², 24 A, 800 V, Number of connections: 2
GTIN-Code4064675267638
Order Number2753940000
Product websitehttps://eshop.weidmueller.com/p/2753940000
Type CodeS2C 2.5 BL
Use Casehttps://eshop.weidmueller.com/p/2753940000
CNSPHYPROP Physical Properties

ECLASS 15.0

27-25-01-01 通过终端
最大连接导体截面积（带导体终端套管的细线）2.500 mm²
最大连接导体截面积（多股线）2.500 mm²
最小连接导体截面积（带导体终端套管的细线）0.340 mm²
最小连接导体截面积（多股线）0.340 mm²
可交叉连接Yes
额定电流24 A
标称截面2.500 mm²
产品类型S2C 2.5 BL
GTIN (EAN) 代码4064675267638
内部文章编号2753940000
制造商名称Weidmueller Group
品牌Klippon® Connect
信号灯数量2
附加链接地址https://eshop.weidmueller.com/p/2753940000
额定电压（直流）800 V
最小导体横截面（带套圈的软导线，不带塑料套）0.340 mm²
最大导体横截面（带套圈的软导线，不带塑料套）2.500 mm²
最小导体横截面（软线，带塑料套圈的套管）0.340 mm²
最大导体横截面（软线，带塑料套圈的套管）2.500 mm²
海关税则号85369010
海关税号类型TARIC
可直接插入连接No
额定电压（交流）800 V
额定截面下的额定电流 [In]24 A
最大导体横截面时的额定电流 [In24 A
执行类型 (1)Without type of activation
执行类型 (2)Without type of activation
可提供混合驱动类型No
高度58.388 mm
颜色blue
深度37.65 mm
连接说明Plug terminal connection
绝缘材料的可燃性等级（根据UL 94)V0
绝缘材料Polyamide (PA)
移动最大导体横截面2.500 mm²
固定最大导体横截面2.500 mm²
移动最小导体横截面0.340 mm²
固定最小导体横截面0.340 mm²
防爆型 (EEx e)No
需要短路电阻片Yes
宽度5.05 mm
安装方式Top-hat rail TH35
额定电压800 V
