Weidmüller
Electric engineering, automation, process control engineering
Low-voltage switch technology
Relay and socket
Timer relay

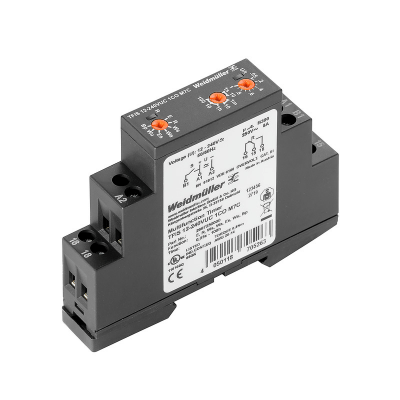

2697250000 - TFIS 12-240VUC 1CO M7C
Weidmüller
Low-voltage switch technology
Relay and socket
Timer relay
2697250000 - TFIS 12-240VUC 1CO M7C
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 2697250000

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
pluggable onto contactor
AAB385
Outputs, changeover delayed/non-delayed
AAB424
suitable for front mounting
AAB660
1
2697250000
TFIS 12-240VUC 1CO M7C
Timing relay, 12...240 V UC -10 % / +10 %, 1 CO contact (AgNi) , 8 A, Screw connection
Timing relay for processing control signals. Short pulses are extended in time and thus reliably detected by the downstream control modules.
4050118705263
Weidmueller Group
No
No
No
显示压缩表示形式 (1 Produkt)
相似件
零部件信息
Price Trend Risk
TFIS 12-240VUC 1CO M7C
标准代码2697250000
描述TFIS 12-240VUC 1CO M7C
公司Weidmüller
上次修改25.09.2024 16:15:46
单位
关键字
2697250000,TFIS 12-240VUC 1CO M7C,Weidmüller

CNS

CNSERPBASE Object Properties
Customs Tariff Number85364900
Description longTiming relay for processing control signals. Short pulses are extended in time and thus reliably detected by the downstream control modules.
Description shortTiming relay, 12...240 V UC -10 % / +10 %, 1 CO contact (AgNi) , 8 A, Screw connection
GTIN-Code4050118705263
Order Number2697250000
Product websitehttps://eshop.weidmueller.com/p/2697250000
Use Casehttps://eshop.weidmueller.com/p/2697250000
CNSPHYPROP Physical Properties

ECLASS 14.0

27-37-16-05 定时继电器
产品类型TFIS 12-240VUC 1CO M7C
EAN代码4050118705263
厂商产品编号2697250000
制造商名称Weidmueller Group
附加链接地址https://eshop.weidmueller.com/p/2697250000
制造商产品说明Timing relay, 12...240 V UC -10 % / +10 %, 1 CO contact (AgNi) , 8 A, Screw connection
制造商产品名称Timing relay
损耗功率7.200

ECLASS 13.0

27-37-16-05 定时继电器
Product typeTFIS 12-240VUC 1CO M7C
EAN代码4050118705263
厂商产品编号2697250000
制造商名称Weidmueller Group
address of additional linkhttps://eshop.weidmueller.com/p/2697250000
Manufacturer product descriptionTiming relay, 12...240 V UC -10 % / +10 %, 1 CO contact (AgNi) , 8 A, Screw connection
Manufacturer product designationTiming relay
损耗功率7.200

ECLASS 12.0

27-37-16-05 定时继电器
可插嵌的接触器No
输出，已延迟/未延迟转换No
适用于正面安装No
适合用于安装在标准导轨上Yes
最小额定控制电压Us（交流50Hz）10.800
最小额定控制电压Us（交流60Hz）10.800
最小额定控制电压Us（直流）10.800
customs tariff number (TARIC)85364900
Product typeTFIS 12-240VUC 1CO M7C
EAN代码4050118705263
厂商产品编号2697250000
制造商名称Weidmueller Group
延时继电器输出的转换器数量1
无延时继电器输出的转换器数量0
延时继电器输出的快门数量0
address of additional linkhttps://eshop.weidmueller.com/p/2697250000
Manufacturer product descriptionTiming relay, 12...240 V UC -10 % / +10 %, 1 CO contact (AgNi) , 8 A, Screw connection
Manufacturer product designationTiming relay
高度88.363
损耗功率7.200
深度65
操纵方法AC/DC
半导体输出No
只适用于远程控制No
插座No
可以远程控制No
响应延迟Yes
瞬时断开Yes
可以始于脉冲闪光，节日期间No
可以始于间歇闪光，节日期间Yes
瞬时接通Yes
可以形成脉冲Yes
可返回延迟Yes
星/三角No
始于节拍脉冲，可变No
始于节拍间隙，可变No
电路连接说明Screw connection
宽度17.5

ETIM 9.0

EC001439 Timer relay

ETIM 8.0

EC001439 Timer relay
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedNo
Suitable for front mountingNo
Suitable for DIN rail (top hat rail) mountingYes
Rated control supply voltage Us at AC 50HZ10.800
Rated control supply voltage Us at AC 60HZ10.800
Rated control supply voltage Us at DC10.800
Number of outputs, delayed, change-over contact1
Number of outputs, undelayed, change-over contact0
Number of outputs, delayed, normally open contact0
Height88.363
Depth65
Voltage type for actuatingAC/DC
With semiconductor outputNo
Suitable as remote controlNo
With plug-in socketNo
Remote operation possibleNo
Function delay-on energizationYes
Function floating contact on de-energizationYes
Function flashing, starting with pulse, fixed timeNo
Function flashing, starting with pause, fixed timeYes
Function floating contact on energizationYes
Function pulse shapingYes
Function delay on de-energizationYes
Function star-deltaNo
Clock function, starting with pulse, variableNo
Clock function, starting with pause, variableNo
Type of electric connectionScrew connection
Width17.5
