615958
1/5
预览图
PREVIEWPERLINE
Item number
IDNR
PIC
Name
NAME
Description
DESC
Shape
SHAPE
Standard
STANDARD
Material
MATERIAL
Surface
SURFACE
Size
SIZEINCH [英寸]
Size
SIZEMM [mm]
Height
A1 [mm]
Diameter
OD1 [mm]
Diameter
ID1 [mm]
Diameter
F1 [mm]
Height
FH1 [mm]
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
211555
23BMP-3 X 3/4-304-7

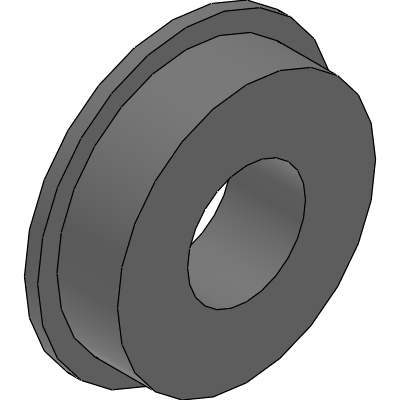

TC THERMOMETER CAP, POLISHED
TC THERMOMETER CAP
ASME
304
#7
3 X 3/4
76.2 X 19.05
15.9
82.0
19.050
90.90
2.85
211677
23BMP-1 1/2 X 3/4-316L-7
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
316L
#7
1 1/2 X 3/4
38.1 X 19.05
15.9
42.6
19.050
50.40
2.85
211739
23BMP-2 X 1/2-316L
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
316L
2 X 1/2
50.8 X 12.7
15.9
55.6
12.700
63.90
2.85
211911
23BMP-2 X 1-316L
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
316L
2 X 1
50.8 X 25.4
15.9
55.6
25.400
63.90
2.85
211916
23BMP-1 1/2 X 1-316L-7
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
316L
#7
1 1/2 X 1
38.1 X 25.4
15.9
42.6
25.400
50.40
2.85
213599
23BMP-2 X 3/4-316L-7
TC THERMOMETER CAP, POLISHED
TC THERMOMETER CAP
ASME
316L
#7
2 X 4
50.8 X 101.6
15.9
55.6
19.050
63.90
2.85
214206
23BMP-1 1/2 X 1/2-316L-7
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
316L
#7
1 1/2 X 1/2
38.1 X 12.7
15.9
42.6
12.700
50.40
2.85
610723
23BMP-2 1/2 X 3/4-316L-7
TC THERMOMETER CAP, POLISHED
TC THERMOMETER CAP
ASME
316L
#7
2 1/2 X 3/4
63.5 X 19.05
15.9
68.8
19.050
77.40
2.85
610724
23BMP-3 X 3/4-316L-7
TC THERMOMETER CAP, POLISHED
TC THERMOMETER CAP
ASME
316L
#7
3 X 3/4
76.2 X 19.05
15.9
82.0
19.050
90.90
2.85
610726
23BMP-4 X 3/4-316L-7
TC THERMOMETER CAP, POLISHED
TC THERMOMETER CAP
ASME
316L
#7
4 X 3/4
101.6 X 19.05
15.9
108.0
19.050
118.90
2.85
615958
23BMP-2-S-1-304-7

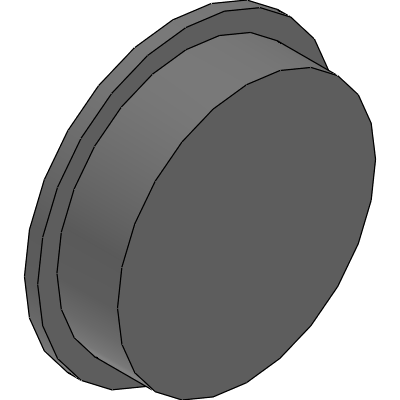

TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
304
#7
2
50.8
15.9
55.6
0.000
63.90
2.85
615959
23BMP-1 1/2-S-1-304-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
304
#7
1 1/2
38.1
15.9
42.6
0.000
50.40
2.85
615960
23BMP-2 1/2-S-1-304-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
304
#7
2 1/2
63.5
15.9
68.8
0.000
77.40
2.85
615961
23BMP-3-S-1-304-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
304
#7
3
76.2
15.9
82.0
0.000
90.90
2.85
615966
23BMP-1 1/2-S-1-316L-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
316L
#7
1 1/2
38.1
15.9
42.6
0.000
50.40
2.85
615967
23BMP-2-S-1-316L-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
316L
#7
2
50.8
15.9
55.6
0.000
63.90
2.85
615969
23BMP-3-S-1-316L-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
316L
#7
3
76.2
15.9
82.0
0.000
90.90
2.85
615971
23BMP-4-S-1-316L-7
TC THERMOMETER CAP, NO TAP
TC THERMOMETER CAP, NO TAP
ASME
316L
#7
4
101.6
15.9
101.0
0.000
118.90
2.85
9634069095
23BMP-2 X 1/4-304-7
TC Thermometer Cap, polished
TC THERMOMETER CAP
ASME
304
#7
2 X 1/4
50.8 X 6.35
15.9
55.6
6.350
63.90
2.85
| 标准代码 | 23BMP |
| 描述 | Thermometer Cap, polished |
| 公司 | Alfa Laval |
| 上次修改 | 09.11.2021 09:04:28 |
| 单位 |
23BMP,Thermometer Cap, polished,Alfa Laval
