HARTING
Electric engineering, automation, process control engineering
Connector system
Industry connector
Sensor-actuator connector chassis (sensor technology acturator)

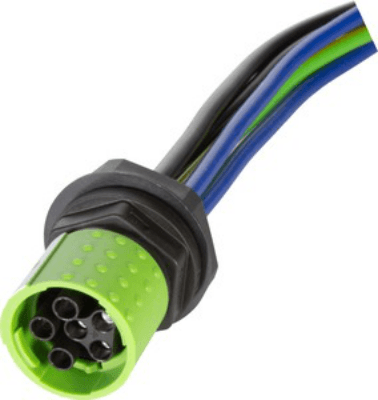

21463596602 - Size15-PFT-CRIMP-6P-F-0.25
HARTING
Sensor-actuator connector chassis (sensor technology acturator)
21463596602 - Size15-PFT-CRIMP-6P-F-0.25
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

HARTING 21463596602

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Alternative product number
SUPPLIERALTNO
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
PE connection present
AAC049
shield connection present
AAC103
1
21463596602
Size15-PFT-CRIMP-6P-F-0.25
Panel feed through, With conductors, for front mounting, ‌25 cm
Panel feed through, With conductors, for front mounting, ‌25 cm
5713140229129
21 46 359 6602
HARTING
3
Yes
No
显示压缩表示形式 (1 Produkt)
相似件
零部件信息
Price Trend Risk
Size15-PFT-CRIMP-6P-F-0.25
标准代码21463596602
描述Size15-PFT-CRIMP-6P-F-0.25
公司HARTING
上次修改17.02.2025 13:27:06
单位
关键字
21463596602,Size15-PFT-CRIMP-6P-F-0.25,HARTING

CNS

CNSERPBASE Object Properties
Customs Tariff Number85366990
Description longPanel feed through, With conductors, for front mounting, ‌25 cm
Description shortPanel feed through, With conductors, for front mounting, ‌25 cm
GTIN-Code5713140229129
Order Number21463596602
CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-03 传感器-执行器插入式连接器（附件、传感器）。
EAN代码5713140229129
厂商产品编号21 46 359 6602
品牌Circular connectors
使用规范IEC 61076-2-116
插头连接器的结构形式Female
海关税号类型TARIC
通过认证0

ECLASS 13.0

27-44-01-03 传感器-执行器插入式连接器（附件、传感器）。
EAN代码5713140229129
厂商产品编号21 46 359 6602
BrandCircular connectors
使用规范IEC 61076-2-116
Construction form of the plug connectorFemale
Type of customs tariff numberTARIC
通过认证0

ECLASS 12.0

27-44-01-03 执行传感器连接头底座（传感器装置附件）
customs tariff number (TARIC)85366990
有PE联接Yes
屏蔽联接（是/否）No
保护度(IP)，已安装IP67, mated condition
接触涂层的材料Silver, Silver
最小工作温度-40
最大工作温度70
EAN代码5713140229129
厂商产品编号21 46 359 6602
BrandCircular connectors
使用规范IEC 61076-2-116
Insertion cycles, min.500
Number of control contacts2
Number of power contacts3
Construction form of the plug connectorFemale
Type of customs tariff numberTARIC
芯线截面2.500
通过认证0
外壳材料Polyamide (PA)

ETIM 9.0

EC003570 Circular connector, mounting (with cable)

ETIM 8.0

EC003570 Circular connector, mounting (with cable)
With PE-connectionYes
With shield connectionNo
Degree of protection (IP), mountedIP67, mated condition
Material of contact surfaceSilver, Silver
Operating temperature-40
Min. number of insertion cycles500
Number of control contacts2
Number of power contacts3
Core cross section2.500
Material housingPolyamide (PA)
