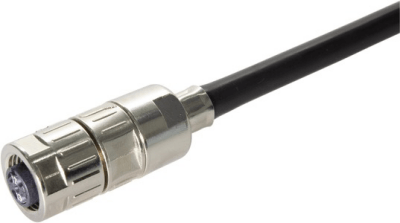

21038812807 - M12 SD female X cod 8 pol crimp flange

HARTING

...

Industry connector

Circular connector (for field assembly)

21038812807 - M12 SD female X cod 8 pol crimp flange

HARTING 21038812807

Expand Table

主变量

次变量

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

Type of interlock

AAB373

21038812807

M12 SD female X cod 8 pol crimp flange

Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm²

Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm², Rated current: ‌0.5 A, Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67 mated condition

5713140226081

21 03 881 2807

HARTING

Screw

显示压缩表示形式 (1 Produkt)

订购编码	21038812807
Shorttext	Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm²
Longtext	Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm², Rated current: ‌0.5 A, Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67 mated condition
上次修改	17.02.2025 13:28:12
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85366990
Description long	Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm², Rated current: ‌0.5 A, Zinc die-cast, Screw locking, Degree of protection: IP65 / IP67 mated condition
Description short	Cable connector, Straight, Female, X-coding, Crimp termination, Liquid crystal polymer (LCP), Contacts: 8, Conductor cross-section: 0.08 ... 0.25 mm²
GTIN-Code	5713140226081
Order Number	21038812807

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-16 圆形连接器（可现场终止）。

额定浪涌电压	0.800
最小连接导体截面积	0.080
极化	X-coded
最小工作温度	-40
最大工作温度	85
EAN代码	5713140226081
导线连接方法	crimp connection
极数	8
最小可连接导体尺寸（AWG/KCMIL）	28
最大可连接导体尺寸（AWG/KCMIL）	AWG 23
海关税号类型	TARIC
FE 连接	No
通过认证	0

27-44-01-15 圆形连接器（套）

ECLASS 13.0

27-44-01-16 圆形连接器（可现场终止）。

互锁类型	Screw
额定浪涌电压	0.800
最小连接导体截面积	0.080
有PE联接	No
极化	X-coded
保护度(IP)，已安装	IP65/IP67, mated condition
最小工作温度	-40
最大工作温度	85
过电压种类	III
rated current	0.500
EAN代码	5713140226081
Conductor connection method	crimp connection
Insertion cycles, min.	500
极数	8
min. connectable conductor size (AWG/KCMIL)	28
max. connectable conductor size (AWG/KCMIL)	AWG 23
Type of customs tariff number	TARIC
FE connection	No
通过认证	0
外壳材料	Zink print cast
额定电压	48

27-44-01-15 Circular connector (set)

ECLASS 12.0

27-44-01-16 Circular connector (for field assembly)

customs tariff number (TARIC)	85366990
互锁类型	Screw
额定浪涌电压	0.800
最小连接导体截面积	0.080
有PE联接	No
极化	X-coded
保护度(IP)，已安装	IP65/IP67, mated condition
最小工作温度	-40
最大工作温度	85
过电压种类	III
rated current	0.500
EAN代码	5713140226081
Conductor connection method	crimp connection
Insertion cycles, min.	500
极数	8
min. connectable conductor size (AWG/KCMIL)	28
max. connectable conductor size (AWG/KCMIL)	AWG 23
Type of customs tariff number	TARIC
FE connection	No
通过认证	0
外壳材料	Zink print cast
额定电压	48

27-44-01-15 Circular connector (set)

ETIM 10.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw
With protective conductor	No
Degree of protection (IP), mounted	IP65/IP67, mated condition
Over voltage category	III
Rated current In	0.500
Min. number of insertion cycles	500
Housing material	Zink print cast
Rated voltage	48

ETIM 9.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw
With protective conductor	No
Degree of protection (IP), mounted	IP65/IP67, mated condition
Over voltage category	III
Rated current In	0.500
Min. number of insertion cycles	500
Housing material	Zink print cast
Rated voltage	48

ETIM 8.0

EC002635 Circular connector for field assembly (industrial connector)
