Weidmueller 2010680000
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
height
BAA020 [mm]
depth
BAB577 [mm]
width
BAF016 [mm]
degree of protection
BAG975
1
2010680000

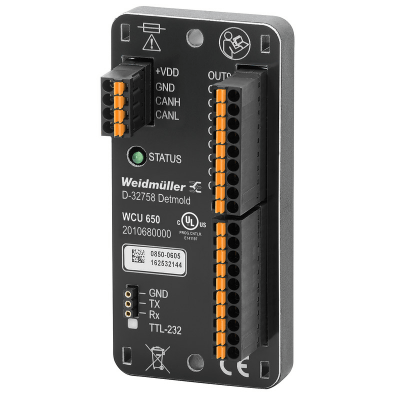

LOGIC UNIT WCU 650
Logic module
A logic module is a small control system with minimal power consumption and intuitive graphical programmability in a compact and robust housing with a wide range of digital/analogue inputs and outputs. Due to its minimal power consumption, wide operational voltage range and integrated power outputs, this mini-PLC is also ideal for battery-supported 12/24 V systems. It can be used in a multitude of industrial, automotive and maritime applications.
4050118397406
Weidmueller Group
93
30
45
IP20
