19462160545 - Han-Eco Outdoor 16A-HSE-M20

HARTING

...

Connector component

Shell for rectangular connectors

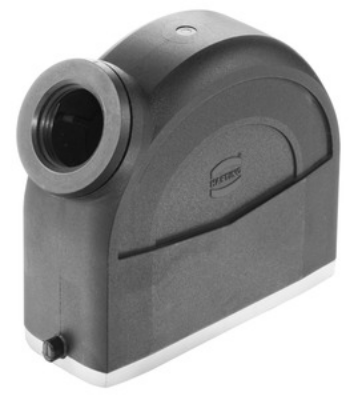

19462160545 - Han-Eco Outdoor 16A-HSE-M20

HARTING 19462160545

Expand Table

主变量

次变量

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

Arrangement of the cable lead-in

AAB224

19462160545

Han-Eco Outdoor 16A-HSE-M20

Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)

Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM

5713140176362

19 46 216 0545

HARTING

lateral

显示压缩表示形式 (1 Produkt)

订购编码	19462160545
Shorttext	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)
Longtext	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM
上次修改	17.02.2025 13:35:17
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM
Description short	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)
GTIN-Code	5713140176362
Order Number	19462160545

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-02 长方形连接器的外壳

产品类型	Han-Eco Outdoor 16A-HSE-M20
EAN代码	5713140176362
厂商产品编号	19 46 216 0545
制造商名称	HARTING Technology Group
品牌	Han-Eco®
导线数量	1
使用规范	IEC 61984
连接螺纹尺寸	M20
尺寸	16 A
制造商产品说明	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM
制造商产品名称	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)
海关税号类型	TARIC
颜色	deep black
通过认证	1

ECLASS 13.0

27-44-02-02 长方形连接器的外壳

电缆引线的布设	lateral
互锁类型	Longitudinal strap
护罩设计	Sleeve housing
密封（是/否）	No
螺口电缆密封管（是/否）	No
保护度(IP)，已安装	IP65
最小工作温度	-40
最大工作温度	125
shackle position	Subsection
Product type	Han-Eco Outdoor 16A-HSE-M20
EAN代码	5713140176362
厂商产品编号	19 46 216 0545
制造商名称	HARTING Technology Group
Brand	Han-Eco®
导线数量	1
使用规范	IEC 61984
Corrosion resistance	Han-Eco®
Size of connection thread	M20
Size	16 A
Mounting method of the cable gland	metric
Manufacturer product description	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM
Manufacturer product designation	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)
Type of customs tariff number	TARIC
机架颜色	black
颜色	deep black
通过认证	1
绝缘材料的可燃性等级（根据UL 94)	V0
外壳材料	Polyamide (PA), Fibre-glass reinforced
活盖	No
UV稳定性	Yes

ECLASS 12.0

27-44-02-02 工业插头连接壳

customs tariff number (TARIC)	85389099
电缆引线的布设	lateral
互锁类型	Longitudinal strap
护罩设计	Sleeve housing
密封（是/否）	No
螺口电缆密封管（是/否）	No
保护度(IP)，已安装	IP65
最小工作温度	-40
最大工作温度	125
shackle position	Subsection
Product type	Han-Eco Outdoor 16A-HSE-M20
EAN代码	5713140176362
厂商产品编号	19 46 216 0545
制造商名称	HARTING Technology Group
Brand	Han-Eco®
导线数量	1
使用规范	IEC 61984
Corrosion resistance	Han-Eco®
Size of connection thread	M20
Size	16 A
Mounting method of the cable gland	metric
Manufacturer product description	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): FPM
Manufacturer product designation	Hood, Size: 16 A, Single locking lever, Side entry, 1x M20, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black)
Type of customs tariff number	TARIC
机架颜色	black
颜色	deep black
通过认证	1
易燃等级	V0
外壳材料	Polyamide (PA), Fibre-glass reinforced
活盖	No
UV稳定性	Yes

ETIM 10.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Longitudinal strap
Type of housing	Sleeve housing
With sealing	No
With cable screw gland	No
Degree of protection (IP), mounted	IP65
Operating temperature	-40
Position of the shackle	Subsection
Corrosion resistant	Han-Eco®
Mounting method of the cable gland	metric
Housing colour	black
Housing material	Polyamide (PA), Fibre-glass reinforced
With hinged lid	No

ETIM 9.0

EC000437 Housing for rectangular connectors

Position cable feed	lateral
Type of locking	Longitudinal strap
Type of housing	Sleeve housing
With sealing	No
With cable screw gland	No
Degree of protection (IP), mounted	IP65
Operating temperature	-40
Position of the shackle	Subsection
Corrosion resistant	Han-Eco®
Mounting method of the cable gland	metric
Housing colour	black
Inflammability class of insulation material according to with UL94	V0
Housing material	Polyamide (PA), Fibre-glass reinforced
With hinged lid	No
UV resistant	Yes

ETIM 8.0

EC000437 Housing for rectangular connectors
