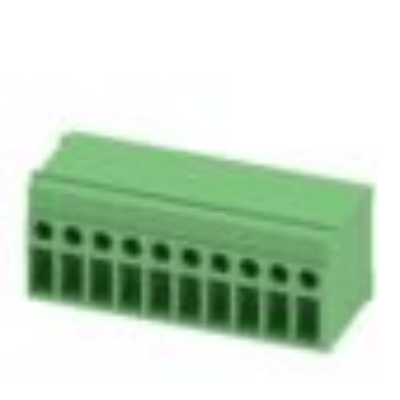

1703225 - FRONT 4-H-6,35-10
PHOENIX CONTACT
Non-plug-in PCB connection technology
Printed circuit board terminal
1703225 - FRONT 4-H-6,35-10
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

PHOENIX CONTACT 1703225

Expand Table
EN
1/5
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
width
BAF016 [mm]
height
BAA020 [mm]
1
1703225
FRONT 4-H-6,35-10
PCB terminal block
Printed circuit board terminal, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: FRONT 4-H, pitch: 6.35 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
Phoenix Contact GmbH & Co. KG
33
4046356857116
65.100
33
显示压缩表示形式 (1 Produkt)
相似件
零部件信息
Price Trend Risk
FRONT 4-H-6,35-10
标准代码1703225
描述FRONT 4-H-6,35-10
公司PHOENIX CONTACT
上次修改14.01.2025 06:41:03
单位
关键字
1703225,FRONT 4-H-6,35-10,PHOENIX CONTACT

CNS

CNSERPBASE Object Properties
Description longPrinted circuit board terminal, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: FRONT 4-H, pitch: 6.35 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
Description shortPCB terminal block
GTIN-Code4046356857116
Order Number1703225
CNSPHYPROP Physical Properties

ECLASS 14.0

27-46-01-01 印制电路板终端
包装类型Cardboard
触点材料Cu alloy
装配高度26
产品类型FRONT 4-H-6,35-10
EAN代码4046356857116
厂商产品编号1703225
制造商名称Phoenix Contact GmbH & Co. KG
列数1
使用规范IEC 60947-7-4
附加链接地址http://www.phoenixcontact.com/product/1703225
极数10
制造商产品系列FRONT 4-H
制造商产品说明Printed circuit board terminal, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: FRONT 4-H, pitch: 6.35 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
制造商产品名称PCB terminal block
制造商通用标识号4063151
额定电压 (II/2)630
额定电压 (III/2)320
额定电压 (III/3)320
额定浪涌电压 (II/2)4
额定浪涌电压 (III/2)4
额定浪涌电压 (III/3)4
网格尺寸 16.350
针脚长度5
导线连接的启动Front screw connection
导线连接方向0
最小导体横截面（带套圈的软导线，不带塑料套）0.500
最大导体横截面（带套圈的软导线，不带塑料套）4
最小导体横截面（软线，带塑料套圈的套管）0.500
最大导体横截面（软线，带塑料套圈的套管）2.500
焊针布局linear
每极焊针数量2
推荐的钻孔直径1.300
针脚尺寸（毫米）1 x 0,8
下限温度-40
上限温度100
涂层 PCB 接触区Tin (Sn)
涂层导体接触面积Tin (Sn)
最小可连接导体尺寸（AWG/KCMIL）20
最大可连接导体尺寸（AWG/KCMIL）10
深度26
宽度65.100
安装方式Print mounting

ECLASS 13.0

27-46-01-01 印制电路板终端
连接类型（导体）Screw connection
印刷电路的紧固类型Add-on housing
最大连接导体截面积（多股线）1.500
最小连接导体截面积（多股线）0.500
包装类型Cardboard
触点材料Cu alloy
最小工作温度-40
最大工作温度100
rated current32
assembly height26
Product typeFRONT 4-H-6,35-10
EAN代码4046356857116
厂商产品编号1703225
制造商名称Phoenix Contact GmbH & Co. KG
列数1
使用规范IEC 60947-7-4
address of additional linkhttp://www.phoenixcontact.com/product/1703225
极数10
Manufacturer product familyFRONT 4-H
Manufacturer product descriptionPrinted circuit board terminal, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: FRONT 4-H, pitch: 6.35 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
Manufacturer product designationPCB terminal block
GLN of manufacturer4063151
Rated voltage (II/2)630
Rated voltage (III/2)320
Rated voltage (III/3)320
Rated surge voltage (II/2)4
Rated surge voltage (III/2)4
Rated surge voltage (III/3)4
Grid dimensions 16.350
Pin length5
Actuation of the conductor connectionFront screw connection
Conductor connection direction0
min. conductor cross-section (flexible wire with ferrule without plastic collar)0.500
max. conductor cross-section (flexible wire with ferrule without plastic collar)4
min. conductor cross-section (flexible wire with ferrule with plastic collar)0.500
max. conductor cross-section (flexible wire with ferrule with plastic collar)2.500
Layout of solder pinslinear
Number of solder pins per pole2
Recommended drill hole diameter pin1.300
Pin dimensions (mm)1 x 0,8
lower limit temperature-40
upper limit temperature100
Coating PCB contact areaTin (Sn)
Coating conductor contact areaTin (Sn)
min. connectable conductor size (AWG/KCMIL)20
max. connectable conductor size (AWG/KCMIL)10
高度33
机架颜色green
深度26
绝缘材料的可燃性等级（根据UL 94)V0
绝缘材料PA
移动最大导体横截面6
固定最大导体横截面6
移动最小导体横截面0.500
固定最小导体横截面0.500
装配soldering
宽度65.100
安装方式Print mounting

ETIM 9.0

EC002643 Printed circuit board terminal
Connection type conductorScrew connection
Type of PCB fasteningAdd-on housing
Connectable conductor cross section multi-wired1.500
Operating temperature-40
Rated current In32
Height33
Housing colourgreen
Inflammability class of insulation material according to with UL94V0
Material insulation bodyPA
Connectable conductor cross section fine-strand without cable end sleeve6
Connectable conductor cross section solid-core6
Type of fasteningsoldering
