1644637
1/5
PREVIEW

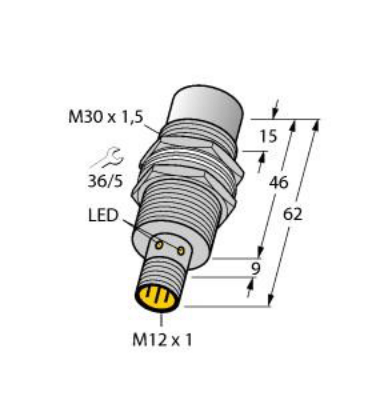

Maßzeichnung
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Diameter of front cap
DF [mm]
CAD parameter 6 (copy of SM construction)
THR
1
1644637
Inductive Sensor, With Extended Switching Distance
Inductive Sensor, With Extended Switching Distance, Operating voltage 10…30 VDC, Rated switching distance 30 mm, Non-flush, Threaded barrel, M30 x 1.5, Brass, PTFE-coated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Large switching distance, Integrated protection against predamping, Little metal-free spaces, DC 3-wire, 10…30 VDC, NO contact, NPN output, M12 x 1 male connector
4047101133448
Turck
NI30U-MT30-AN6X-H1141
26.500
Gewinderohr
Turck - 1644637
| 订购编码 | 1644637 |
| 简短文本 | Inductive Sensor, With Extended Switching Distance |
| 上次修改 | 25.01.2024 12:09:36 |
| 单位 |
