1581310
1/5
PREVIEW

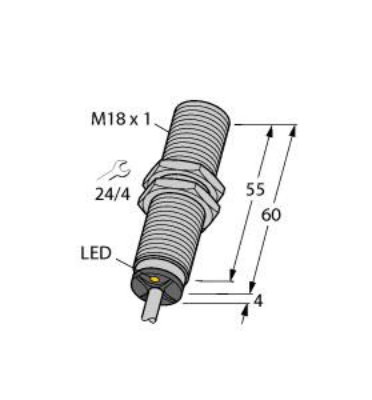

Maßzeichnung
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Diameter of front cap
DF [mm]
CAD parameter 6 (copy of SM construction)
THR
Thread length
LG [mm]
1
1581310
Inductive Sensor
Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance 5 mm, Flush, Cable length 2 m, Threaded barrel, M18 x 1, Chrome-plated brass, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 4-wire, 10…65 VDC, Changeover contact, NPN output, Cable connection
4047101125412
Turck
BI5U-M18M-VN4X
15.500
Gewinderohr
55
Turck - 1581310
| 订购编码 | 1581310 |
| 简短文本 | Inductive Sensor |
| 上次修改 | 25.01.2024 12:09:11 |
| 单位 |
