14-7-3728
1/5
PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
D
D [mm]
Note
NOTE
weight
WEIGHT [g]
S
S [mm]
Link to PINET website
WEB
1
14-7-3728
304 stainless steel
brushed
80
80
2.5
7
type 2 / square corners
175
5.2
https://webstore.pinet-industrie.com/en/products/25605-lift-off-hinges-80-x-80-mm-stainless-steel-with-6-holes.html
Pinet - 1473728
| 订购编码 | 14-7-3728 |

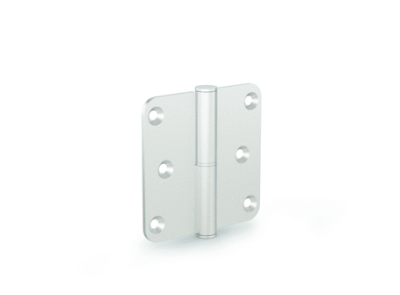

| Shorttext | Lift-off hinges 80 x 80 mm - stainless steel with 6 holes |
| 上次修改 | 22.02.2024 12:31:27 |
| 单位 |
