14-7-3679
1/5
PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
D
D [mm]
Note
NOTE
weight
WEIGHT [g]
S
S [mm]
Link to PINET website
WEB
1
14-7-3679
304 stainless steel
brushed
100
82
2.5
7
type 2 / square corners
220
4.7
https://webstore.pinet-industrie.com/en/products/25609-lift-off-hinges-100-x-82-mm-stainless-steel-with-8-holes.html
Pinet - 1473679
| 订购编码 | 14-7-3679 |

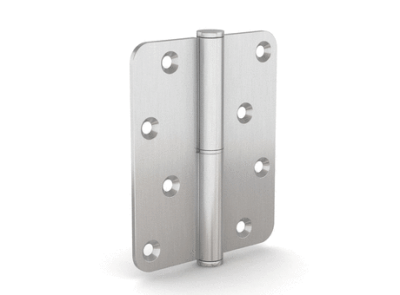

| Shorttext | Lift-off hinges 100 x 82 mm - stainless steel with 8 holes |
| 上次修改 | 23.02.2024 14:10:55 |
| 单位 |
