14-7-3394
1/5
PREVIEW
Reference
REF
Material
MATERIAL
Finish
FINISH
A
A [mm]
B
B [mm]
C
C [mm]
D
D [mm]
F
F [mm]
Note
NOTE
G
G [mm]
weight
WEIGHT [g]
S
S [mm]
Link to PINET website
WEB
1
14-7-3394
steel
nickel plated
50
30
1.3
4
6
type 1 / drilled
34
20
3.6
https://webstore.pinet-industrie.com/en/products/25620-lift-off-hinges-50-x-30-mm-and-60-x-40-mm.html
Pinet - 1473394
| 订购编码 | 14-7-3394 |

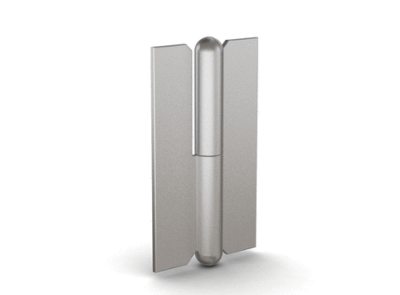

| Shorttext | Lift-off hinges 50 x 30 mm and 60 x 40 mm |
| 上次修改 | 22.02.2024 12:31:27 |
