1456462 - SACC-SQ-M12FSB-5CON-20-L180

PHOENIX CONTACT

...

Industry connector

Circular connector (for field assembly)

1456462 - SACC-SQ-M12FSB-5CON-20-L180

PHOENIX CONTACT 1456462

Expand Table

主变量

次变量

1/5

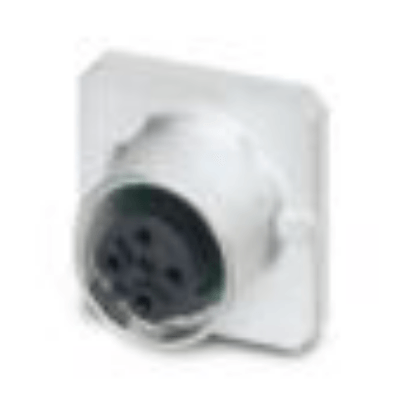

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

net weight

AAF040 [kg]

1456462

SACC-SQ-M12FSB-5CON-20-L180

Device connector front mounting

Device connector front mounting, Universal, 5-position, Socket, straight, M12, coding: B, Front mounting, Square flange, Wave soldering, 0.34 mm²

Phoenix Contact GmbH & Co. KG

4046356617079

IP20

0.013

显示压缩表示形式 (1 Produkt)

订购编码	1456462
Shorttext	Device connector front mounting
Longtext	Device connector front mounting, Universal, 5-position, Socket, straight, M12, coding: B, Front mounting, Square flange, Wave soldering, 0.34 mm²
上次修改	14.01.2025 06:41:09
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Description long	Device connector front mounting, Universal, 5-position, Socket, straight, M12, coding: B, Front mounting, Square flange, Wave soldering, 0.34 mm²
Description short	Device connector front mounting
GTIN-Code	4046356617079
Order Number	1456462

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-16 圆形连接器（可现场终止）。

嵌入式触点的类型（外部）	Female (socket)
极化	B-coded
最小工作温度	-25
最大工作温度	85
产品类型	SACC-SQ-M12FSB-5CON-20-L180
EAN代码	4046356617079
厂商产品编号	1456462
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-101
附加链接地址	http://www.phoenixcontact.com/product/1456462
极数	5
制造商产品说明	Device connector front mounting, Universal, 5-position, Socket, straight, M12, coding: B, Front mounting, Square flange, Wave soldering, 0.34 mm²
插头连接器的结构形式	M12
制造商产品名称	Device connector front mounting
制造商通用标识号	4063151
通过认证	cULus Recognized, cULus Recognized

27-44-01-15 圆形连接器（套）

ECLASS 13.0

27-44-01-16 圆形连接器（可现场终止）。

互锁类型	Screw locking mechanism
嵌入式触点的类型（外部）	Female (socket)
护罩设计	even
有PE联接	No
极化	B-coded
保护度(IP)，已安装	IP20
接触涂层的材料	Gold
最小工作温度	-25
最大工作温度	85
过电压种类	II
rated current	4
Product type	SACC-SQ-M12FSB-5CON-20-L180
EAN代码	4046356617079
厂商产品编号	1456462
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-101
address of additional link	http://www.phoenixcontact.com/product/1456462
Insertion cycles, min.	100
Number of control contacts	5
Number of power contacts	0
Material used for the thread ring	Zinc die-cast, nickel-plated
极数	5
Manufacturer product description	Device connector front mounting, Universal, 5-position, Socket, straight, M12, coding: B, Front mounting, Square flange, Wave soldering, 0.34 mm²
Construction form of the plug connector	M12
Number of data contacts	0
Manufacturer product designation	Device connector front mounting
GLN of manufacturer	4063151
污染度	3
通过认证	cULus Recognized, cULus Recognized
绝缘材料的可燃性等级（根据UL 94)	V0
外壳材料	Polyamide (PA)
被屏蔽	No
状况显示器	No
额定电压	60

27-44-01-15 Circular connector (set)

ETIM 10.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP20
Material of contact surface	Gold
Over voltage category	II
Rated current In	4
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Polyamide (PA)
Screened	No
With status indication	No
Rated voltage	60

ETIM 9.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP20
Material of contact surface	Gold
Over voltage category	II
Rated current In	4
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Polyamide (PA)
Screened	No
With status indication	No
Rated voltage	60
