1441684 - SACC-SQ-M12MS-8CON-20/0,5

PHOENIX CONTACT

...

Industry connector

Circular connector (for field assembly)

1441684 - SACC-SQ-M12MS-8CON-20/0,5

PHOENIX CONTACT 1441684

Expand Table

主变量

次变量

1/5

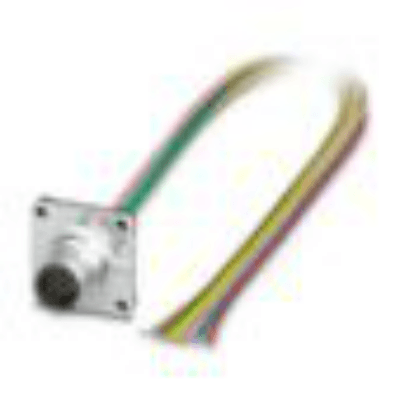

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

net weight

AAF040 [kg]

1441684

SACC-SQ-M12MS-8CON-20/0,5

Device connector front mounting

Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239727

Phoenix Contact GmbH & Co. KG

4046356533027

IP67

0.024

显示压缩表示形式 (1 Produkt)

订购编码	1441684
Shorttext	Device connector front mounting
Longtext	Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239727
上次修改	14.01.2025 06:41:08
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Description long	Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239727
Description short	Device connector front mounting
GTIN-Code	4046356533027
Order Number	1441684

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-16 圆形连接器（可现场终止）。

极化	A-coded
最小工作温度	-25
最大工作温度	85
产品类型	SACC-SQ-M12MS-8CON-20/0,5
EAN代码	4046356533027
厂商产品编号	1441684
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-101
附加链接地址	http://www.phoenixcontact.com/product/1441684
极数	8
制造商产品说明	Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239727
插头连接器的结构形式	M12
制造商产品名称	Device connector front mounting
制造商通用标识号	4063151
通过认证	cULus Recognized, UL Recognized

27-44-01-15 圆形连接器（套）

ECLASS 13.0

27-44-01-16 圆形连接器（可现场终止）。

互锁类型	Screw locking mechanism
护罩表面的设计	Zinc die-cast, nickel-plated
护罩设计	even
有PE联接	No
极化	A-coded
保护度(IP)，已安装	IP67
接触涂层的材料	Nickel
最小工作温度	-25
最大工作温度	85
过电压种类	II
rated current	2
Product type	SACC-SQ-M12MS-8CON-20/0,5
EAN代码	4046356533027
厂商产品编号	1441684
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-101
address of additional link	http://www.phoenixcontact.com/product/1441684
Insertion cycles, min.	100
Number of control contacts	8
Number of power contacts	0
Material used for the thread ring	Zinc die-cast, nickel-plated
极数	8
Manufacturer product description	Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239727
Construction form of the plug connector	M12
Number of data contacts	0
Manufacturer product designation	Device connector front mounting
GLN of manufacturer	4063151
污染度	3
通过认证	cULus Recognized, UL Recognized
绝缘材料的可燃性等级（根据UL 94)	V0
外壳材料	Zink print cast
被屏蔽	No
状况显示器	No
额定电压	30

27-44-01-15 Circular connector (set)

ETIM 10.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Coating housing	Zinc die-cast, nickel-plated
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP67
Material of contact surface	Nickel
Over voltage category	II
Rated current In	2
Min. number of insertion cycles	100
Number of control contacts	8
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Zink print cast
Screened	No
With status indication	No
Rated voltage	30

ETIM 9.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Coating housing	Zinc die-cast, nickel-plated
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP67
Material of contact surface	Nickel
Over voltage category	II
Rated current In	2
Min. number of insertion cycles	100
Number of control contacts	8
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Zink print cast
Screened	No
With status indication	No
Rated voltage	30
