PHOENIX CONTACT
Electric engineering, automation, process control engineering
Connector system
Industry connector
Circular connector, mounting (without cable)

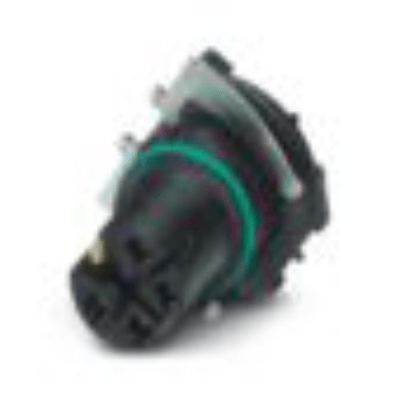

1420821 - SACC-CI-M12FSK-4PE-L180 THR T
PHOENIX CONTACT
Industry connector
Circular connector, mounting (without cable)
1420821 - SACC-CI-M12FSK-4PE-L180 THR T
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

PHOENIX CONTACT 1420821

Expand Table
EN
1/5
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
Degree of protection (IP), mounted
AAC108
net weight
AAF040 [kg]
Min. operating temperature
AAC820 [°C]
1
1420821
SACC-CI-M12FSK-4PE-L180 THR T
Contact carrier
Contact carrier, Power, 5-position, Socket, straight, M12, coding: K, PCB mounting, THR solder connection
Phoenix Contact GmbH & Co. KG
26
4055626280660
IP67, when plugged in
0.005
-25
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
附件
Price Trend Risk
PHOENIX CONTACT - 1420821
订购编码1420821
ShorttextContact carrier
LongtextContact carrier, Power, 5-position, Socket, straight, M12, coding: K, PCB mounting, THR solder connection
上次修改14.01.2025 06:41:10
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Description longContact carrier, Power, 5-position, Socket, straight, M12, coding: K, PCB mounting, THR solder connection
Description shortContact carrier
GTIN-Code4055626280660
Order Number1420821
CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-09 圆形连接器，安装（不带电缆）
极化K
产品类型SACC-CI-M12FSK-4PE-L180 THR T
EAN代码4055626280660
厂商产品编号1420821
制造商名称Phoenix Contact GmbH & Co. KG
附加链接地址http://www.phoenixcontact.com/product/1420821
嵌入式连接器的安装PCB mounting
制造商产品说明Contact carrier, Power, 5-position, Socket, straight, M12, coding: K, PCB mounting, THR solder connection
内部连接THR solder connection
插头连接器的结构形式Socket
制造商产品名称Contact carrier
制造商通用标识号4063151

ECLASS 13.0

27-44-01-09 Circular connector, mounting (without cable)
嵌入式触点的类型（外部）Female (socket)
有螺纹Yes
有PE联接No
极化K
屏蔽联接（是/否）No
保护度(IP)，已安装IP67, when plugged in
接触涂层的材料Au
最小工作温度-25
最大工作温度105
rated current16
Product typeSACC-CI-M12FSK-4PE-L180 THR T
EAN代码4055626280660
厂商产品编号1420821
制造商名称Phoenix Contact GmbH & Co. KG
address of additional linkhttp://www.phoenixcontact.com/product/1420821
Insertion cycles, min.100
Number of control contacts5
Mounting of the flush-type connectorPCB mounting
Screw-in threadM12
极数5
Manufacturer product descriptionContact carrier, Power, 5-position, Socket, straight, M12, coding: K, PCB mounting, THR solder connection
Connection on the insideTHR solder connection
Construction form of the plug connectorSocket
Manufacturer product designationContact carrier
GLN of manufacturer4063151
最高环境温度105
绝缘材料的可燃性等级（根据UL 94)V0

ETIM 10.0

EC003569 Circular connector, mounting (without cable)
Type of plug-in contact, outer sideFemale (socket)
With threadYes
With PE-connectionNo
With shield connectionNo
Degree of protection (IP), mountedIP67, when plugged in
Material of contact surfaceAu
Operating temperature-25
Rated current In16
Min. number of insertion cycles100
Number of control contacts5
Screw-in threadM12
Number of poles5
Ambient temperature105
Inflammability class of insulation material according to with UL94V0

ETIM 9.0

EC003569 Circular connector, mounting (without cable)
Type of plug-in contact, outer sideFemale (socket)
With threadYes
With PE-connectionNo
With shield connectionNo
Degree of protection (IP), mountedIP67, when plugged in
Material of contact surfaceAu
Operating temperature-25
Rated current In16
Min. number of insertion cycles100
Number of control contacts5
Screw-in threadM12
Number of poles5
Ambient temperature105
Inflammability class of insulation material according to with UL94V0
