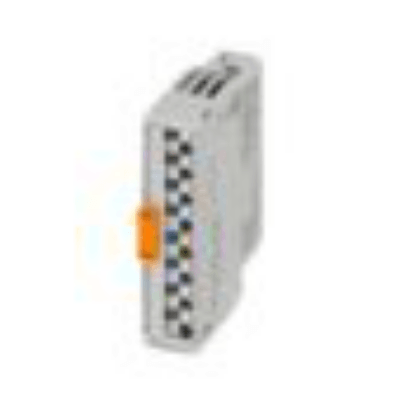

PHOENIX CONTACT 1337224
展开表
1/5
Produktbild
PREVIEW
Artikelnummer des Herstellers
MANUID
Herstellertypbezeichnung
MANUTYPEDESC
Kurzbeschreibung
DESCSHORT
Langbeschreibung
DESCLONG
Internationale Artikelnummer
INTNO
Name des Herstellers
MANUNAME
Breite
BAF016 [mm]
Höhe
BAA020 [mm]
Tiefe
BAB577 [mm]
Zertifikat/Zulassung
BAB392
unterstütztes Protokoll
AAM479
1
1337224
AXL SE PD16 GND
Potenzialverteiler
Axioline Smart Elements, Potenzialverteilungsmodul, GND, Schutzart: IP20
4063151639020
Phoenix Contact GmbH & Co. KG
14.900
62.200
62
CE-compliant, cULus Listed, cULus Listed
Local bus
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
附件
报价请求（RFQ）
ECLASS 13.0 - 1337224
| 订购编码 | 1337224 |
| 简短文本 | Potenzialverteiler |
| 长文 | Axioline Smart Elements, Potenzialverteilungsmodul, GND, Schutzart: IP20 |
| 上次修改 | 05.06.2026 18:40:43 |
| 单位 |
分类
CNS
CNSERPBASE Object Properties
| Customs Tariff Number | 85369010 |
| Description long | Axioline Smart Elements, Potenzialverteilungsmodul, GND, Schutzart: IP20 |
| Description short | Potenzialverteiler |
| GTIN-Code | 4063151639020 |
| Order Number | 1337224 |
ECLASS 14.0
27-24-26-10 现场总线，分布式外围设备-供给与分段模块
| 产品类型 | AXL SE PD16 GND |
| EAN代码 | 4063151639020 |
| 厂商产品编号 | 1337224 |
| 制造商名称 | Phoenix Contact GmbH & Co. KG |
| 使用规范 | Electrostatic discharge (ESD) IEC 61000-4-2, Electromagnetic fields IEC 61000-4-3, Fast transients (burst) IEC 61000-4-4, Transient overvoltage (surge) IEC 61000-4-5, Conducted interference IEC 61000-4-6 |
| 附加链接地址 | http://www.phoenixcontact.com/product/1337224 |
| SILcl 符合 EN 62061 标准 | 0 |
| 制造商产品说明 | Axioline Smart Elements, Potenzialverteilungsmodul, GND, Schutzart: IP20 |
| 制造商产品名称 | Potenzialverteiler |
| 制造商通用标识号 | 4063151 |
| 产品的 URI | http://www.phoenixcontact.com/product/1337224 |
| 损耗功率 | 0 W |
| 通过认证 | CE-compliant, cULus Listed, cULus Listed |
ECLASS 13.0
| 距离模块 | Nein |
| 最大供电电压（直流） | 30 V |
| 最小供电电压（直流） | 19.200 V |
| 性能等级（依据EN ISO 13849-1) | ohne |
| wall mounting/direct mounting possible | Nein |
| supported protocol | Local bus |
| transmission standard | None |
| Product type | AXL SE PD16 GND |
| safety integrity level (SIL) | ohne |
| HW切削处数量 | 0 |
| HW切削处平行数量 | 0 |
| HW接口数(PROFINET) | 0 |
| HW切削处数量 序列号RS232 | 0 |
| HW切削处数量 序列号RS422 | 0 |
| HW切削处数量 序列号RS485 | 0 |
| HW切削处数量 序列号TTY | 0 |
| HW切削处数量 USB | 0 |
| HW接口数(无线) | 0 |
| 其他HW接口数 | 0 |
| EAN代码 | 4063151639020 |
| 厂商产品编号 | 1337224 |
| 制造商名称 | Phoenix Contact GmbH & Co. KG |
| 使用规范 | Electrostatic discharge (ESD) IEC 61000-4-2, Electromagnetic fields IEC 61000-4-3, Fast transients (burst) IEC 61000-4-4, Transient overvoltage (surge) IEC 61000-4-5, Conducted interference IEC 61000-4-6 |
| address of additional link | http://www.phoenixcontact.com/product/1337224 |
| SILcl acc. to EN 62061 | 0 |
| Manufacturer product description | Axioline Smart Elements, Potenzialverteilungsmodul, GND, Schutzart: IP20 |
| Manufacturer product designation | Potenzialverteiler |
| GLN of manufacturer | 4063151 |
| URI of the product | http://www.phoenixcontact.com/product/1337224 |
| 高度 | 62.200 mm |
| 损耗功率 | 0 W |
| 通过认证 | CE-compliant, cULus Listed, cULus Listed |
| 深度 | 62 mm |
| 供电电压类型 | DC |
| 附属设备 (Ex ia) | Nein |
| 附属设备 (Ex ib) | Nein |
| 可以正面安装 | Nein |
| 可装配齿条 | Nein |
| 可装配承重轨 | Nein |
| 通过分隔的汇流排联结单元的励磁总线接入 | Ja |
| 光学界面 | Nein |
| 可以总线诊断 | Nein |
| 电位隔离 | Nein |
| 可用分段模块 | Ja |
| 系统组件 | Ja |
| 适用于安全功能 | Nein |
| 电路连接说明 | Push-in-Anschluss |
| 燃气防爆类别 | ohne |
| 粉尘防爆类别 | ohne |
| 宽度 | 14.900 mm |
| 保护方式IP | IP20 |
| 具有供电系数 | Nein |
ETIM 10.0
EC001600 Fieldbus, decentr. periphery - power supply/segment module
| Remote module | Nein |
| Supply voltage DC | 30 V |
| Performance level according to EN ISO 13849-1 | ohne |
| Wall mounting/direct mounting | Nein |
| Supporting protocol for Modbus | Local bus |
| Supporting protocol for other bus systems | Local bus |
| Supporting protocol for LON | Local bus |
| Supporting protocol for ASI | Local bus |
| Supporting protocol for KNX | Local bus |
| Supporting protocol for DeviceNet | Local bus |
| Supporting protocol for SUCONET | Local bus |
| Supporting protocol for Data-Highway | Local bus |
| Supporting protocol for PROFIBUS | Local bus |
| Supporting protocol for INTERBUS | Local bus |
| Supporting protocol for TCP/IP | Local bus |
| Supporting protocol for SERCOS | Local bus |
| Supporting protocol for PROFIsafe | Local bus |
| Supporting protocol for INTERBUS-Safety | Local bus |
| Supporting protocol for PROFINET IO | Local bus |
| Supporting protocol for SafetyBUS p | Local bus |
| Supporting protocol for PROFINET CBA | Local bus |
| Supporting protocol for Foundation Fieldbus | Local bus |
| Supporting protocol for EtherNet/IP | Local bus |
| Supporting protocol for DeviceNet Safety | Local bus |
| Supporting protocol for AS-Interface Safety at Work | Local bus |
| Supporting protocol for CAN | Local bus |
| Radio standard Bluetooth | None |
| SIL according to IEC 61508 | ohne |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces other | 0 |
| Height | 62.200 mm |
| Depth | 62 mm |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ia) | Nein |
| Appendant operation agent (Ex ib) | Nein |
| Front built-in possible | Nein |
| Rack-assembly possible | Nein |
| Rail mounting possible | Nein |
| Fieldbus connection over separate bus coupler possible | Ja |
| With optical interface | Nein |
| Bus diagnosis possible | Nein |
| With potential separation | Nein |
| Suitable as segment module | Ja |
| System accessory | Ja |
| Suitable for safety functions | Nein |
| Type of electric connection | Push-in-Anschluss |
| Explosion safety category for gas | ohne |
| Explosion safety category for dust | ohne |
| Width | 14.900 mm |
| Degree of protection (IP) | IP20 |
| With power supply module | Nein |
ETIM 9.0
| Remote module | Nein |
| Supply voltage DC | 30 V |
| Performance level according to EN ISO 13849-1 | ohne |
| Wall mounting/direct mounting | Nein |
| Supporting protocol for Modbus | Local bus |
| Supporting protocol for other bus systems | Local bus |
| Supporting protocol for LON | Local bus |
| Supporting protocol for ASI | Local bus |
| Supporting protocol for KNX | Local bus |
| Supporting protocol for DeviceNet | Local bus |
| Supporting protocol for SUCONET | Local bus |
| Supporting protocol for Data-Highway | Local bus |
| Supporting protocol for PROFIBUS | Local bus |
| Supporting protocol for INTERBUS | Local bus |
| Supporting protocol for TCP/IP | Local bus |
| Supporting protocol for SERCOS | Local bus |
| Supporting protocol for PROFIsafe | Local bus |
| Supporting protocol for INTERBUS-Safety | Local bus |
| Supporting protocol for PROFINET IO | Local bus |
| Supporting protocol for SafetyBUS p | Local bus |
| Supporting protocol for PROFINET CBA | Local bus |
| Supporting protocol for Foundation Fieldbus | Local bus |
| Supporting protocol for EtherNet/IP | Local bus |
| Supporting protocol for DeviceNet Safety | Local bus |
| Supporting protocol for AS-Interface Safety at Work | Local bus |
| Supporting protocol for CAN | Local bus |
| Radio standard Bluetooth | None |
| SIL according to IEC 61508 | ohne |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces other | 0 |
| Height | 62.200 mm |
| Depth | 62 mm |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ia) | Nein |
| Appendant operation agent (Ex ib) | Nein |
| Front built-in possible | Nein |
| Rack-assembly possible | Nein |
| Rail mounting possible | Nein |
| Fieldbus connection over separate bus coupler possible | Ja |
| With optical interface | Nein |
| Bus diagnosis possible | Nein |
| With potential separation | Nein |
| Suitable as segment module | Ja |
| System accessory | Ja |
| Suitable for safety functions | Nein |
| Type of electric connection | Push-in-Anschluss |
| Explosion safety category for gas | ohne |
| Explosion safety category for dust | ohne |
| Width | 14.900 mm |
| Degree of protection (IP) | IP20 |
| With power supply module | Nein |
