1233121 - SPC 4/ 4-STTL-6,35

PHOENIX CONTACT

...

Plug-in PCB connection technology

PCB connector (conductor connection)

1233121 - SPC 4/ 4-STTL-6,35

PHOENIX CONTACT 1233121

Expand Table

主变量

次变量

1/5

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

width

BAF016 [mm]

height

BAA020 [mm]

1233121

SPC 4/ 4-STTL-6,35

PCB connector

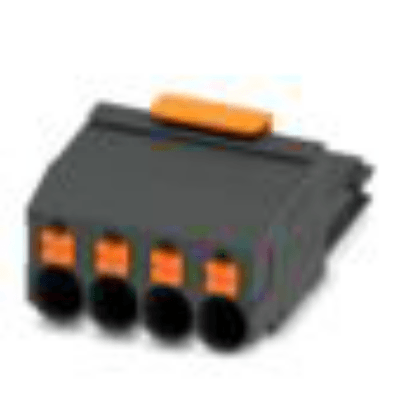

PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: SPC 4/..-STTL, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard

Phoenix Contact GmbH & Co. KG

4063151336134

26.600

18.100

显示压缩表示形式 (1 Produkt)

订购编码	1233121
Shorttext	PCB connector
Longtext	PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: SPC 4/..-STTL, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard
上次修改	14.01.2025 06:40:59
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Description long	PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: SPC 4/..-STTL, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard
Description short	PCB connector
GTIN-Code	4063151336134
Order Number	1233121

CNSPHYPROP Physical Properties

ECLASS 14.0

27-46-02-02 电缆连接器

连接类型（导体）	Push-in connection
互锁类型	Snap-lock fitting
包装类型	packed in cardboard
产品类型	SPC 4/ 4-STTL-6,35
EAN代码	4063151336134
厂商产品编号	1233121
制造商名称	Phoenix Contact GmbH & Co. KG
列数	1
使用规范	IEC 61984
附加链接地址	http://www.phoenixcontact.com/product/1233121
彩色执行元件	orange
制造商产品系列	SPC 4/..-STTL
制造商产品说明	PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: SPC 4/..-STTL, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard
制造商产品名称	PCB connector
制造商通用标识号	4063151
额定电压 (II/2)	1000
额定电压 (III/2)	1000
额定电压 (III/3)	1000
额定浪涌电压 (II/2)	6
额定浪涌电压 (III/2)	8
额定浪涌电压 (III/3)	8
网格尺寸 1	6.350
锁定系统	Self-locking flange
导线连接的启动	Operating pusher
导线连接方向	0
最小导体横截面（带套圈的软导线，不带塑料套）	0.250
最大导体横截面（带套圈的软导线，不带塑料套）	4
最小导体横截面（软线，带塑料套圈的套管）	0.250
最大导体横截面（软线，带塑料套圈的套管）	4
插入方向	0
下限温度	-40
上限温度	105
涂层插头接触区	Tin (Sn)
涂层导体接触面积	Tin (Sn)
高度	18.100
通过认证	IEC 61984
深度	23.750
装配	snap-lock
宽度	26.600

ECLASS 13.0

27-46-02-02 电缆连接器

连接类型（导体）	Push-in connection
互锁类型	Snap-lock fitting
触点设计	Socket
包装类型	packed in cardboard
触点材料	Copper
rated current	24
Product type	SPC 4/ 4-STTL-6,35
EAN代码	4063151336134
厂商产品编号	1233121
制造商名称	Phoenix Contact GmbH & Co. KG
列数	1
使用规范	IEC 61984
address of additional link	http://www.phoenixcontact.com/product/1233121
Colour actuating element	orange
Manufacturer product family	SPC 4/..-STTL
Manufacturer product description	PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 4, product range: SPC 4/..-STTL, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard
Manufacturer product designation	PCB connector
GLN of manufacturer	4063151
Rated voltage (II/2)	1000
Rated voltage (III/2)	1000
Rated voltage (III/3)	1000
Rated surge voltage (II/2)	6
Rated surge voltage (III/2)	8
Rated surge voltage (III/3)	8
Grid dimensions 1	6.350
Locking system	Self-locking flange
Actuation of the conductor connection	Operating pusher
Conductor connection direction	0
min. conductor cross-section (flexible wire with ferrule without plastic collar)	0.250
max. conductor cross-section (flexible wire with ferrule without plastic collar)	4
min. conductor cross-section (flexible wire with ferrule with plastic collar)	0.250
max. conductor cross-section (flexible wire with ferrule with plastic collar)	4
Plug-in direction	0
lower limit temperature	-40
upper limit temperature	105
Coating plug contact area	Tin (Sn)
Coating conductor contact area	Tin (Sn)
高度	18.100
机架颜色	black
通过认证	IEC 61984
深度	23.750
绝缘材料的可燃性等级（根据UL 94)	V0
绝缘材料	PA
移动最大导体横截面	4
固定最大导体横截面	4
移动最小导体横截面	0.200
固定最小导体横截面	0.200
装配	snap-lock
宽度	26.600

ETIM 10.0

EC002638 Cable connector

Contact type	Socket
Material contact	Copper
Rated current In	24
Housing colour	black
Material insulation body	PA
Connectable conductor cross section fine-strand without cable end sleeve	4
Connectable conductor cross section solid-core	4

ETIM 9.0

EC002638 Cable connector

Contact type	Socket
Material contact	Copper
Rated current In	24
Housing colour	black
Inflammability class of insulation material according to with UL94	V0
Material insulation body	PA
Connectable conductor cross section fine-strand without cable end sleeve	4
Connectable conductor cross section solid-core	4
