PHOENIX CONTACT
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers

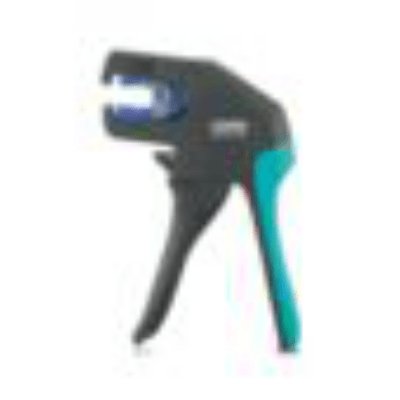

1212705 - WIREFOX-E 6SC
PHOENIX CONTACT
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers
1212705 - WIREFOX-E 6SC
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

PHOENIX CONTACT 1212705

Expand Table
EN
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
Insulation present
BAD383
VDE tested
AAG615
ESD proved
AAG794
impact protection present
AAL858
1
1212705
WIREFOX-E 6SC
Stripping tool
Stripping tool, min. cross section: 1.5 mm², max. cross section: 6 mm², weight 168, black/green
Phoenix Contact GmbH & Co. KG
5
4046356783606
Yes
No
No
Yes
显示压缩表示形式 (1 Produkt)
附件
零部件信息
Price Trend Risk
WIREFOX-E 6SC
标准代码1212705
描述WIREFOX-E 6SC
公司PHOENIX CONTACT
上次修改24.01.2025 18:01:05
单位
关键字
1212705,WIREFOX-E 6SC,PHOENIX CONTACT

CNS

CNSERPBASE Object Properties
Description longStripping tool, min. cross section: 1.5 mm², max. cross section: 6 mm², weight 168, black/green
Description shortStripping tool
GTIN-Code4046356783606
Order Number1212705

ECLASS 14.0

21-04-37-06 剥线钳
最大带材直径 (AWG)10
最小带材直径 (AWG)16
自动扳手Yes
产品类型WIREFOX-E 6SC
EAN代码4046356783606
厂商产品编号1212705
制造商名称Phoenix Contact GmbH & Co. KG
附加链接地址http://www.phoenixcontact.com/product/1212705
制造商产品说明Stripping tool, for cables and conductors (especially for cables protected against short circuits and ground leakages) 1.5 - 6 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
制造商产品名称Stripping tool
制造商通用标识号4063151
制造商 URIwww.phoenixcontact.com
产品的 URIhttp://www.phoenixcontact.com/product/1212705
最大横截面6
最小横截面1.5
净重168
顶部宽度20

ECLASS 13.0

21-04-37-06 剥线钳
VDE testedNo
grip casingmulti component sleeves
ESD provedNo
jaw length7
max. strip diameter (AWG)10
min. strip diameter (AWG)16
max. strip range (cross-section)6
min. strip range (cross-section)1.5
automatic wrenchingYes
self adjustingYes
strip length adjustableYes
wire cutter presentYes
depth of notch adjustableYes
longitudinal section presentNo
impact protection presentYes
round edge presentNo
isolation protection (1000 V) presentNo
spiral cut possibleNo
Product typeWIREFOX-E 6SC
EAN代码4046356783606
厂商产品编号1212705
制造商名称Phoenix Contact GmbH & Co. KG
address of additional linkhttp://www.phoenixcontact.com/product/1212705
Manufacturer product descriptionStripping tool, for cables and conductors (especially for cables protected against short circuits and ground leakages) 1.5 - 6 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Manufacturer product designationStripping tool
GLN of manufacturer4063151
URI of manufacturerwww.phoenixcontact.com
URI of the producthttp://www.phoenixcontact.com/product/1212705
长度191
头部高度48
最大横截面6
最小横截面1.5
绝缘Yes
净重168
手柄说明2-components
顶部宽度20

ETIM 9.0

EC002109 Wire stripper pliers
VDE testedNo
Handle covermulti component sleeves
ESD testedNo
Jaw length7
Strip range cross-section6
Self-adjustingYes
Strip length adjustableYes
With wire cutterYes
Depth of notch adjustableYes
Longitudinal sectionNo
With impact protectionYes
Round edgeNo
Isolation protection 1000 VNo
Spiral cutNo
Length191
Head height48
InsulatedYes
Grip design2-components
