PHOENIX CONTACT
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers

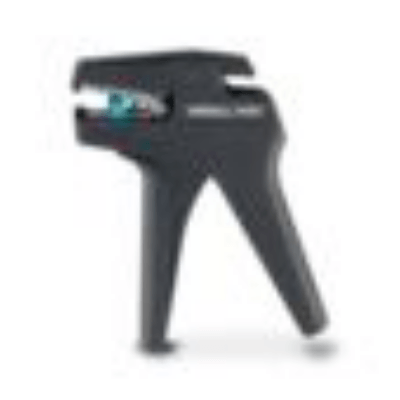

1212368 - WIREFOX 2,5
PHOENIX CONTACT
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers
1212368 - WIREFOX 2,5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

PHOENIX CONTACT 1212368

Expand Table
EN
Product preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
International product number
INTNO
Insulation present
BAD383
VDE tested
AAG615
ESD proved
AAG794
impact protection present
AAL858
1
1212368
WIREFOX 2,5
Stripping tool
Stripping tool, min. cross section: 0.08 mm², max. cross section: 2.5 mm², weight 160, black
Phoenix Contact GmbH & Co. KG
5
4046356456128
Yes
No
No
Yes
显示压缩表示形式 (1 Produkt)
附件
零部件信息
Price Trend Risk
WIREFOX 2,5
标准代码1212368
描述WIREFOX 2,5
公司PHOENIX CONTACT
上次修改24.01.2025 18:01:05
单位
关键字
1212368,WIREFOX 2,5,PHOENIX CONTACT

CNS

CNSERPBASE Object Properties
Description longStripping tool, min. cross section: 0.08 mm², max. cross section: 2.5 mm², weight 160, black
Description shortStripping tool
GTIN-Code4046356456128
Order Number1212368

ECLASS 14.0

21-04-37-06 剥线钳
最大带材直径 (AWG)14
最小带材直径 (AWG)28
自动扳手Yes
产品类型WIREFOX 2,5
EAN代码4046356456128
厂商产品编号1212368
制造商名称Phoenix Contact GmbH & Co. KG
附加链接地址http://www.phoenixcontact.com/product/1212368
制造商产品说明Stripping tool, for conductors and cables with a conductor cross section from 0.08 to 2.5 mm, self-adjusting, stripping length adjustable up to 15 mm, cutting capacity up to 6 mm² stranded/1.5 mm² solid
制造商产品名称Stripping tool
制造商通用标识号4063151
制造商 URIwww.phoenixcontact.com
产品的 URIhttp://www.phoenixcontact.com/product/1212368
最大横截面2.5
最小横截面0.08
净重160
顶部宽度16.5

ECLASS 13.0

21-04-37-06 剥线钳
VDE testedNo
grip casingplastic sleeve
ESD provedNo
jaw length5
max. strip diameter (AWG)14
min. strip diameter (AWG)28
max. strip range (diameter)1.9
min. strip range (diameter)0.3
max. strip range (cross-section)2.5
min. strip range (cross-section)0.08
automatic wrenchingYes
self adjustingYes
strip length adjustableYes
wire cutter presentYes
depth of notch adjustableNo
longitudinal section presentNo
impact protection presentYes
round edge presentNo
isolation protection (1000 V) presentNo
spiral cut possibleNo
Product typeWIREFOX 2,5
EAN代码4046356456128
厂商产品编号1212368
制造商名称Phoenix Contact GmbH & Co. KG
address of additional linkhttp://www.phoenixcontact.com/product/1212368
Manufacturer product descriptionStripping tool, for conductors and cables with a conductor cross section from 0.08 to 2.5 mm, self-adjusting, stripping length adjustable up to 15 mm, cutting capacity up to 6 mm² stranded/1.5 mm² solid
Manufacturer product designationStripping tool
GLN of manufacturer4063151
URI of manufacturerwww.phoenixcontact.com
URI of the producthttp://www.phoenixcontact.com/product/1212368
长度160
头部高度36
最大横截面2.5
最小横截面0.08
绝缘Yes
净重160
手柄说明1-component
顶部宽度16.5

ETIM 9.0

EC002109 Wire stripper pliers
VDE testedNo
Handle coverplastic sleeve
ESD testedNo
Jaw length5
Strip range diameter1.9
Strip range cross-section2.5
Self-adjustingYes
Strip length adjustableYes
With wire cutterYes
Depth of notch adjustableNo
Longitudinal sectionNo
With impact protectionYes
Round edgeNo
Isolation protection 1000 VNo
Spiral cutNo
Length160
Head height36
InsulatedYes
Grip design1-component
