1162474 - SACC-DSI-M12FSK-4PE-M16XL/1,0

PHOENIX CONTACT

...

Industry connector

Circular connector (for field assembly)

1162474 - SACC-DSI-M12FSK-4PE-M16XL/1,0

PHOENIX CONTACT 1162474

Expand Table

主变量

次变量

1/5

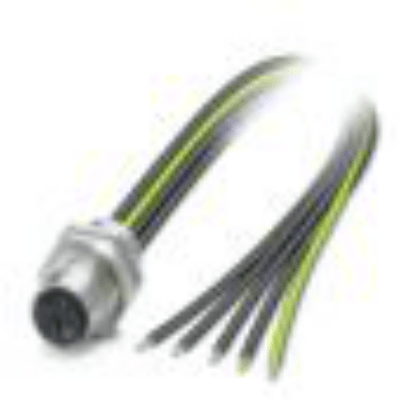

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

net weight

AAF040 [kg]

1162474

SACC-DSI-M12FSK-4PE-M16XL/1,0

Device connector rear mounting

Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: K, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm², PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238540

Phoenix Contact GmbH & Co. KG

4063151171148

IP67

0.022

显示压缩表示形式 (1 Produkt)

订购编码	1162474
Shorttext	Device connector rear mounting
Longtext	Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: K, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm², PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238540
上次修改	14.01.2025 06:41:08
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Description long	Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: K, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm², PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238540
Description short	Device connector rear mounting
GTIN-Code	4063151171148
Order Number	1162474

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-16 圆形连接器（可现场终止）。

嵌入式触点的类型（外部）	Female (socket)
极化	K-coded
最小工作温度	-40
最大工作温度	85
产品类型	SACC-DSI-M12FSK-4PE-M16XL/1,0
EAN代码	4063151171148
厂商产品编号	1162474
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-111
附加链接地址	http://www.phoenixcontact.com/product/1162474
极数	5
制造商产品说明	Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: K, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm², PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238540
插头连接器的结构形式	M12
制造商产品名称	Device connector rear mounting
制造商通用标识号	4063151
通过认证	cULus Recognized

27-44-01-15 圆形连接器（套）

ECLASS 13.0

27-44-01-16 圆形连接器（可现场终止）。

互锁类型	Screw locking mechanism
嵌入式触点的类型（外部）	Female (socket)
护罩设计	even
有PE联接	No
极化	K-coded
保护度(IP)，已安装	IP67
接触涂层的材料	Gold
最小工作温度	-40
最大工作温度	85
过电压种类	III
rated current	16
Product type	SACC-DSI-M12FSK-4PE-M16XL/1,0
EAN代码	4063151171148
厂商产品编号	1162474
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	IEC 61076-2-111
address of additional link	http://www.phoenixcontact.com/product/1162474
Insertion cycles, min.	100
Number of control contacts	5
Number of power contacts	0
Material used for the thread ring	Zinc die-cast, nickel-plated
极数	5
Manufacturer product description	Device connector rear mounting, Power, 5-position, Socket, straight, M12, coding: K, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm², PEX litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238540
Construction form of the plug connector	M12
Number of data contacts	0
Manufacturer product designation	Device connector rear mounting
GLN of manufacturer	4063151
污染度	3
通过认证	cULus Recognized
绝缘材料的可燃性等级（根据UL 94)	V0
外壳材料	Polyamide (PA)
被屏蔽	No
状况显示器	No
额定电压	630

27-44-01-15 Circular connector (set)

ETIM 10.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP67
Material of contact surface	Gold
Over voltage category	III
Rated current In	16
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Polyamide (PA)
Screened	No
With status indication	No
Rated voltage	630

ETIM 9.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP67
Material of contact surface	Gold
Over voltage category	III
Rated current In	16
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
Material thread ring	Zinc die-cast, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	Polyamide (PA)
Screened	No
With status indication	No
Rated voltage	630
