1080228 - SACC-M12FSK-4PEPL-CL SH

PHOENIX CONTACT

...

Industry connector

Circular connector (for field assembly)

1080228 - SACC-M12FSK-4PEPL-CL SH

PHOENIX CONTACT 1080228

Expand Table

主变量

次变量

1/5

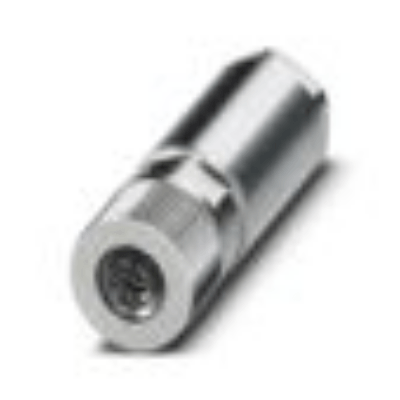

Product preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

International product number

INTNO

Degree of protection (IP), mounted

AAC108

net weight

AAF040 [kg]

1080228

SACC-M12FSK-4PEPL-CL SH

Power connector

Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm, Contact 5 leading

Phoenix Contact GmbH & Co. KG

4055626802954

IP65

0.091

显示压缩表示形式 (1 Produkt)

订购编码	1080228
Shorttext	Power connector
Longtext	Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm, Contact 5 leading
上次修改	24.01.2025 18:37:37
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Description long	Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm, Contact 5 leading
Description short	Power connector
GTIN-Code	4055626802954
Order Number	1080228

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-01-16 圆形连接器（可现场终止）。

嵌入式触点的类型（外部）	Female (socket)
最大连接导体截面积	1.500
最小连接导体截面积	1.500
极化	K-coded
最小工作温度	-40
最大工作温度	85
产品类型	SACC-M12FSK-4PEPL-CL SH
EAN代码	4055626802954
厂商产品编号	1080228
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	based on IEC 61076-2-111
附加链接地址	http://www.phoenixcontact.com/product/1080228
导线连接方法	Push-in connection
极数	5
制造商产品说明	Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm, Contact 5 leading
插头连接器的结构形式	M12
制造商产品名称	Power connector
制造商通用标识号	4063151
最小可连接导体尺寸（AWG/KCMIL）	16
最大可连接导体尺寸（AWG/KCMIL）	16
通过认证	EAC

27-44-01-15 圆形连接器（套）

ECLASS 13.0

27-44-01-16 圆形连接器（可现场终止）。

互锁类型	Screw locking mechanism
嵌入式触点的类型（外部）	Female (socket)
护罩表面的设计	Brass, nickel-plated
护罩设计	even
最大连接导体截面积	1.500
最小连接导体截面积	1.500
有PE联接	No
极化	K-coded
保护度(IP)，已安装	IP65
接触涂层的材料	Gold
最小工作温度	-40
最大工作温度	85
过电压种类	III
rated current	16
Product type	SACC-M12FSK-4PEPL-CL SH
EAN代码	4055626802954
厂商产品编号	1080228
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	based on IEC 61076-2-111
address of additional link	http://www.phoenixcontact.com/product/1080228
Conductor connection method	Push-in connection
Insertion cycles, min.	100
Number of control contacts	5
Number of power contacts	0
External cable diameter, min.	8
External cable diameter, max.	13
Material used for the thread ring	Brass, nickel-plated
极数	5
Manufacturer product description	Power connector, Power, 5-position, shielded, Socket straight M12, coding: K, Push-lock spring connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 13 mm, Contact 5 leading
Construction form of the plug connector	M12
Number of data contacts	0
Manufacturer product designation	Power connector
GLN of manufacturer	4063151
min. connectable conductor size (AWG/KCMIL)	16
max. connectable conductor size (AWG/KCMIL)	16
污染度	3
通过认证	EAC
绝缘材料的可燃性等级（根据UL 94)	V0
外壳材料	brass nickel-plated
被屏蔽	Yes
状况显示器	No
额定电压	690

27-44-01-15 Circular connector (set)

ETIM 10.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Coating housing	Brass, nickel-plated
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP65
Material of contact surface	Gold
Over voltage category	III
Rated current In	16
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
For cable outer diameter	8
Material thread ring	Brass, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	brass nickel-plated
Screened	Yes
With status indication	No
Rated voltage	690

ETIM 9.0

EC002635 Circular connector for field assembly (industrial connector)

Type of locking	Screw locking mechanism
Coating housing	Brass, nickel-plated
Type of housing	even
With protective conductor	No
Degree of protection (IP), mounted	IP65
Material of contact surface	Gold
Over voltage category	III
Rated current In	16
Min. number of insertion cycles	100
Number of control contacts	5
Number of power contacts	0
For cable outer diameter	8
Material thread ring	Brass, nickel-plated
Number of data contacts	0
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Housing material	brass nickel-plated
Screened	Yes
With status indication	No
Rated voltage	690
