ETIM 9.0

EG000058 - Connectors

EC000438 - Contact insert for rectangular connectors

1013948 - HC-Q05-I-PT-F

ETIM 9.0

EG000058 - Connectors

EC000438 - Contact insert for rectangular connectors

1013948 - HC-Q05-I-PT-F

PHOENIX CONTACT 1013948

Expand Table

1/5

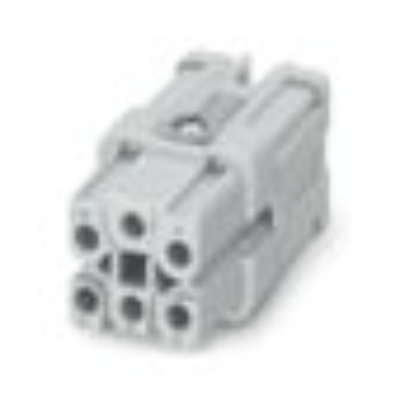

Produktbild

PREVIEW

Artikelnummer des Herstellers

MANUID

Herstellertypbezeichnung

MANUTYPEDESC

Kurzbeschreibung

DESCSHORT

Langbeschreibung

DESCLONG

Internationale Artikelnummer

INTNO

Name des Herstellers

MANUNAME

Breite

BAF016 [mm]

Höhe

BAA020 [mm]

Tiefe

BAB577 [mm]

Zertifikat/Zulassung

BAB392

1013948

HC-Q05-I-PT-F

Kontakteinsatz

Kontakteinsatz, Polzahl: 5+PE, Baugröße: D7, Leistungskontakte: 5, Anzahl der Anschlüsse je Pol: 1, Buchse, Push-in-Anschluss, 230 V, 16 A, 0,5 mm² ... 2,5 mm², Anwendung: Leistung

4055626492940

Phoenix Contact GmbH & Co. KG

23.23494

UL Recognized

显示压缩表示形式 (1 Produkt)

订购编码	1013948
Shorttext	Kontakteinsatz
Longtext	Kontakteinsatz, Polzahl: 5+PE, Baugröße: D7, Leistungskontakte: 5, Anzahl der Anschlüsse je Pol: 1, Buchse, Push-in-Anschluss, 230 V, 16 A, 0,5 mm² ... 2,5 mm², Anwendung: Leistung
上次修改	05.06.2026 19:00:45
单位

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85366990
Description long	Kontakteinsatz, Polzahl: 5+PE, Baugröße: D7, Leistungskontakte: 5, Anzahl der Anschlüsse je Pol: 1, Buchse, Push-in-Anschluss, 230 V, 16 A, 0,5 mm² ... 2,5 mm², Anwendung: Leistung
Description short	Kontakteinsatz
GTIN-Code	4055626492940
Order Number	1013948

ECLASS 14.0

27-44-02-05 工业插头连接器接触部分

产品类型	HC-Q05-I-PT-F
EAN代码	4055626492940
厂商产品编号	1013948
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	not available
附加链接地址	http://www.phoenixcontact.com/product/1013948
尺寸	D7
联系类型	rolled
制造商产品说明	Kontakteinsatz, Polzahl: 5+PE, Baugröße: D7, Leistungskontakte: 5, Anzahl der Anschlüsse je Pol: 1, Buchse, Push-in-Anschluss, 230 V, 16 A, 0,5 mm² ... 2,5 mm², Anwendung: Leistung
制造商产品名称	Kontakteinsatz
制造商通用标识号	4063151
制造商 URI	www.phoenixcontact.com
通过认证	UL Recognized

ECLASS 13.0

27-44-02-05 工业插头连接器接触部分

插入式触点的直径	2.500 mm
触点设计	Buchse
无触点的接触式插头	Nein
最大连接导体截面积（多股线）	2.500 mm^2
最小连接导体截面积（多股线）	0.500 mm^2
有线路保护	Nein
有PE联接	Ja
接触涂层的材料	Ag
最小工作温度	-40 °C
最大工作温度	125 °C
过电压种类	III
rated current	16 A
material connector of connector insert	Thermoplast
Product type	HC-Q05-I-PT-F
EAN代码	4055626492940
厂商产品编号	1013948
制造商名称	Phoenix Contact GmbH & Co. KG
使用规范	not available
address of additional link	http://www.phoenixcontact.com/product/1013948
Conductor connection method	Federzuganschluss
Size	D7
Insertion cycles, min.	500
Contact type	rolled
Number of power contacts	5
Number of control contacts	0
极数	5
Manufacturer product description	Kontakteinsatz, Polzahl: 5+PE, Baugröße: D7, Leistungskontakte: 5, Anzahl der Anschlüsse je Pol: 1, Buchse, Push-in-Anschluss, 230 V, 16 A, 0,5 mm² ... 2,5 mm², Anwendung: Leistung
Manufacturer product designation	Kontakteinsatz
GLN of manufacturer	4063151
URI of manufacturer	www.phoenixcontact.com
高度	23.23494 mm
最高环境温度	125 °C
污染度	3
通过认证	UL Recognized
深度	21 mm
绝缘材料的可燃性等级（根据UL 94)	V0
移动最大导体横截面	2.500 mm^2
移动最小导体横截面	0.500 mm^2
宽度	21 mm
额定电压	230 V

ETIM 10.0

EC000438 Contact insert for rectangular connectors

Diameter plug-in contact	2.500 mm
Contact type	Buchse
Contact insert without contacts	Nein
Connectable conductor cross section multi-wired	2.500 mm^2
With wire protection	Nein
With protective conductor	Ja
Material of contact surface	Ag
Operating temperature	-40 °C
Over voltage category	III
Rated current In	16 A
Material connector insert	Thermoplast
Type of electric connection	Federzuganschluss
Min. number of insertion cycles	500
Number of power contacts	5
Number of control contacts	0
Number of poles	5
Height	23.23494 mm
Ambient temperature	125 °C
Pollution degree	3
Depth	21 mm
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	2.500 mm^2
Width	21 mm
Rated voltage	230 V

ETIM 9.0

EC000438 Contact insert for rectangular connectors

Diameter plug-in contact	2.500 mm
Contact type	Buchse
Contact insert without contacts	Nein
Connectable conductor cross section multi-wired	2.500 mm^2
With wire protection	Nein
With protective conductor	Ja
Material of contact surface	Ag
Operating temperature	-40 °C
Over voltage category	III
Rated current In	16 A
Material connector insert	Thermoplast
Type of electric connection	Federzuganschluss
Min. number of insertion cycles	500
Number of power contacts	5
Number of control contacts	0
Number of poles	5
Height	23.23494 mm
Ambient temperature	125 °C
Pollution degree	3
Depth	21 mm
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	2.500 mm^2
Width	21 mm
Rated voltage	230 V
