100010548
1/5
PREVIEW

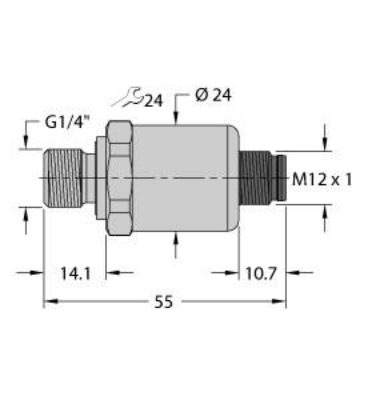

Maßzeichnung
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Cadenas_FS_PT1000_PT2000_electrical_connection
E
D
1
100010548
Pressure Transmitter, With Current Output (2-Wire)
Pressure Transmitter, With Current Output (2-Wire), Operating voltage 10…30 VDC, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, Pressure range 0…60 bar rel., 10…30 VDC, Analog output 4…20 mA, Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring, Connector device, M12 × 1, ATEX, IECEx, Category II 1/2 GD, Ex zone 0
4047101513646
Turck
PT60R-1004-IX-H1143
Stecker M12 x 1
Aussengewinde - G1/4, hinten dichtend DIN 3852 Form
Turck - 100010548
| 订购编码 | 100010548 |
| 简短文本 | Pressure Transmitter, With Current Output (2-Wire) |
| 上次修改 | 07.05.2024 11:18:35 |
| 单位 |
