100001932

Expand Table
EN
1/5

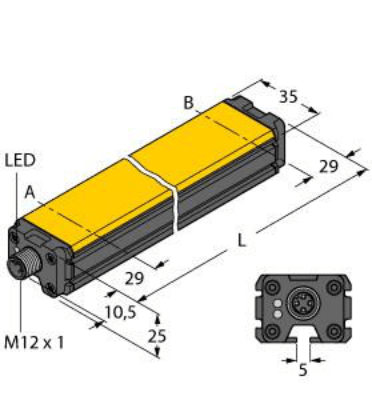

Maßzeichnung
MASSZEICHNUNG
Product number of the Manufacturer
BMENB
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
Housing length
L [mm]
Packaging quantity
NO_CU_PER_OU
Deeplink
DEEPLINK
1
100001932
Inductive Linear Position Sensor
Inductive Linear Position Sensor, Operating voltage 15…30 VDC, Measuring range 100 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Measuring range displayed via LED, Immune to electromagnetic interference, Extremely short blind zones, Resolution, 16-bit, 4-wire, 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, improved machine safety possible through redundancy, M12 × 1 connector, 5-pin
4047101454574
Turck
LI100P0-Q25LM0-ELIU5X3-H1151
158
1
Deeplink
显示压缩表示形式 (1 Produkt)
订购编码100001932
ShorttextInductive Linear Position Sensor
上次修改07.05.2024 11:22:25
单位

分类

CNS

CNSERPBASE Object Properties
Order Number100001932
