HARTING
Electric engineering, automation, process control engineering
Connector system
Connector component
Contact insert for industrial connectors

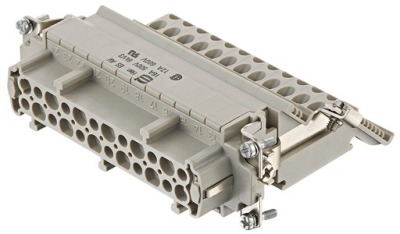

09330244739 - Han ES AV Pos. 24 Insert Term. Block rig
HARTING
Connector component
Contact insert for industrial connectors
09330244739 - Han ES AV Pos. 24 Insert Term. Block rig
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

HARTING 09330244739

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Alternative product number
SUPPLIERALTNO
Manufacturer Name
MANUNAME
Delivery Time
DELTIME
Rated surge voltage
AAB499 [kV]
1
09330244739
Han ES AV Pos. 24 Insert Term. Block rig
Inserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
Inserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
5713140052291
09 33 024 4739
HARTING
56
6
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
附件
Price Trend Risk
HARTING - 09330244739
订购编码09330244739
ShorttextInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
LongtextInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
上次修改17.02.2025 13:39:44
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Customs Tariff Number85366990
Description longInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
Description shortInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
GTIN-Code5713140052291
Order Number09330244739
CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-05 工业插头连接器接触部分
产品类型Han ES AV Pos. 24 Insert Term. Block rig
EAN代码5713140052291
厂商产品编号09 33 024 4739
制造商名称HARTING Technology Group
品牌Han® ES AV
使用规范IEC 60664-1
尺寸24 B
制造商产品说明Inserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
制造商产品名称Inserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
通过认证0

ECLASS 13.0

27-44-02-05 工业插头连接器接触部分
额定浪涌电压6
触点设计Socket
最大连接导体截面积（多股线）2.500
最小连接导体截面积（多股线）0.140
有线路保护No
有PE联接Yes
接触涂层的材料Silver
触点材料Other copper alloys
最小工作温度-40
最大工作温度125
rated current16
material connector of connector insertThermoplast
Product typeHan ES AV Pos. 24 Insert Term. Block rig
EAN代码5713140052291
厂商产品编号09 33 024 4739
制造商名称HARTING Technology Group
BrandHan® ES AV
使用规范IEC 60664-1
Conductor connection methodSpring pulley connection
Size24 B
Insertion cycles, min.500
极数24
Manufacturer product descriptionInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
Manufacturer product designationInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
污染度3
通过认证0
绝缘材料的可燃性等级（根据UL 94)V0
移动最大导体横截面2.500
移动最小导体横截面0.140
额定电压500

ECLASS 12.0

27-44-02-05 工业插头连接插入物
customs tariff number (TARIC)85366990
额定浪涌电压6
触点设计Socket
最大连接导体截面积（多股线）2.500
最小连接导体截面积（多股线）0.140
有线路保护No
有PE联接Yes
接触涂层的材料Silver
触点材料Other copper alloys
最小工作温度-40
最大工作温度125
rated current16
material connector of connector insertThermoplast
Product typeHan ES AV Pos. 24 Insert Term. Block rig
EAN代码5713140052291
厂商产品编号09 33 024 4739
制造商名称HARTING Technology Group
BrandHan® ES AV
使用规范IEC 60664-1
Conductor connection methodSpring pulley connection
Size24 B
Insertion cycles, min.500
极数24
Manufacturer product descriptionInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14 ... 2.5 mm², Copper alloy, Silver plated
Manufacturer product designationInserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B
污染度3
通过认证0
易燃等级V0
移动最大导体横截面2.500
移动最小导体横截面0.140
额定电压500

ETIM 10.0

EC000438 Contact insert for rectangular connectors
Rated surge voltage6
Contact typeSocket
Connectable conductor cross section multi-wired2.500
With wire protectionNo
With protective conductorYes
Material of contact surfaceSilver
Material contactOther copper alloys
Operating temperature-40
Rated current In16
Material connector insertThermoplast
Type of electric connectionSpring pulley connection
Min. number of insertion cycles500
Number of poles24
Pollution degree3
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand without cable end sleeve2.500
Rated voltage500

ETIM 9.0

EC000438 Contact insert for rectangular connectors
Rated surge voltage6
Contact typeSocket
Connectable conductor cross section multi-wired2.500
With wire protectionNo
With protective conductorYes
Material of contact surfaceSilver
Material contactOther copper alloys
Operating temperature-40
Rated current In16
Material connector insertThermoplast
Type of electric connectionSpring pulley connection
Min. number of insertion cycles500
Number of poles24
Pollution degree3
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand without cable end sleeve2.500
Rated voltage500

ETIM 8.0

EC000438 Contact insert for rectangular connectors
