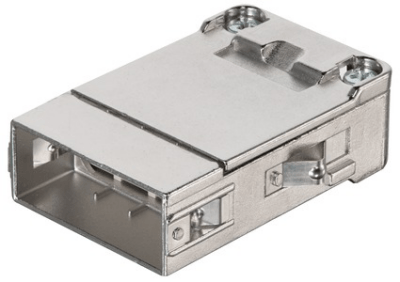

09140203014 - Han shielded module male (shield-GND)

HARTING

...

Connector component

Module for industrial connectors (data)

09140203014 - Han shielded module male (shield-GND)

HARTING 09140203014

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

Rated surge voltage

AAB499 [kV]

09140203014

Han shielded module male (shield-GND)

Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)

5713140187726

09 14 020 3014

HARTING

0.800

显示压缩表示形式 (1 Produkt)

订购编码	09140203014
Shorttext	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
Longtext	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
上次修改	17.02.2025 13:44:19
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85389099
Description long	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
Description short	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
GTIN-Code	5713140187726
Order Number	09140203014

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-18 工业连接器的模块（数据）

额定浪涌电压	0.800 kV
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	0.520 mm²
最小连接导体截面积（多股线）	0.090 mm²
有线路保护	No
有PE联接	No
屏蔽联接（是/否）	Yes
最小工作温度	-40 °C
最大工作温度	85 °C
额定电流	4 A
接触片材料	Plastic
产品类型	Han shielded module male (shield-GND)
EAN代码	5713140187726
厂商产品编号	09 14 020 3014
制造商名称	HARTING Technology Group
使用规范	IEC 60664-1
插入周期，最短	500
联系类型	Crimp termination
极数	20
制造商产品说明	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
制造商产品名称	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
海关税号类型	TARIC
污染度	3
通过认证	0
绝缘材料的可燃性等级（根据UL 94)	V0
移动最大导体横截面	0.520 mm²
移动最小导体横截面	0.090 mm²
额定电压	32 V

ECLASS 12.0

27-44-02-18 Module for industrial connectors (data)

customs tariff number (TARIC)	85389099
额定浪涌电压	0.800 kV
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	0.520 mm²
最小连接导体截面积（多股线）	0.090 mm²
有线路保护	No
有PE联接	No
屏蔽联接（是/否）	Yes
最小工作温度	-40 °C
最大工作温度	85 °C
rated current	4 A
material of contact insert	Plastic
Product type	Han shielded module male (shield-GND)
EAN代码	5713140187726
厂商产品编号	09 14 020 3014
制造商名称	HARTING Technology Group
使用规范	IEC 60664-1
Insertion cycles, min.	500
Contact type	Crimp termination
极数	20
Manufacturer product description	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
Manufacturer product designation	Crimp termination, Male, Contacts: 20 + shielding, Conductor cross-section: 0.09 ... 0.52 mm², Rated current: ‌4 A, Liquid crystal polymer (LCP)
Type of customs tariff number	TARIC
污染度	3
通过认证	0
易燃等级	V0
移动最大导体横截面	0.520 mm²
移动最小导体横截面	0.090 mm²
额定电压	32 V

ETIM 10.0

EC000438 Contact insert for rectangular connectors
