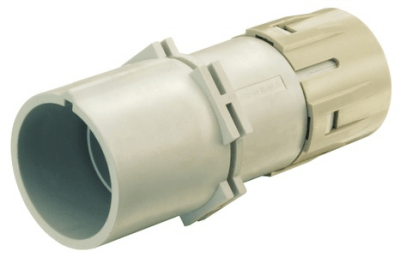

09110013012 - Han 1 HC-M-TC650

Contact insert for industrial connectors

09110013012 - Han 1 HC-M-TC650

HARTING 09110013012

Expand Table

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

Rated surge voltage

AAB499 [kV]

09110013012

Han 1 HC-M-TC650

Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A

Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²

5713140016149

09 11 001 3012

HARTING

显示压缩表示形式 (1 Produkt)

订购编码	09110013012
Shorttext	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A
Longtext	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²
上次修改	17.02.2025 13:38:23
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85366990
Description long	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²
Description short	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A
GTIN-Code	5713140016149
Order Number	09110013012

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-05 工业插头连接器接触部分

产品类型	Han 1 HC-M-TC650
EAN代码	5713140016149
厂商产品编号	09 11 001 3012
制造商名称	HARTING Technology Group
品牌	Han® HC Modular
使用规范	IEC 60664-1
制造商产品说明	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²
制造商产品名称	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A
通过认证	0

ECLASS 13.0

27-44-02-05 工业插头连接器接触部分

额定浪涌电压	18 kV
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	240 mm²
最小连接导体截面积（多股线）	70 mm²
有线路保护	No
有PE联接	No
最小工作温度	-40 °C
最大工作温度	125 °C
rated current	650 A
material connector of connector insert	Thermoplast
Product type	Han 1 HC-M-TC650
EAN代码	5713140016149
厂商产品编号	09 11 001 3012
制造商名称	HARTING Technology Group
Brand	Han® HC Modular
使用规范	IEC 60664-1
Conductor connection method	crimp connection
Insertion cycles, min.	500
Manufacturer product description	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²
Manufacturer product designation	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A
污染度	3
通过认证	0
绝缘材料的可燃性等级（根据UL 94)	V0
移动最大导体横截面	240 mm²
移动最小导体横截面	70 mm²
额定电压	4000 V

ECLASS 12.0

27-44-02-05 工业插头连接插入物

customs tariff number (TARIC)	85366990
额定浪涌电压	18 kV
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	240 mm²
最小连接导体截面积（多股线）	70 mm²
有线路保护	No
有PE联接	No
最小工作温度	-40 °C
最大工作温度	125 °C
rated current	650 A
material connector of connector insert	Thermoplast
Product type	Han 1 HC-M-TC650
EAN代码	5713140016149
厂商产品编号	09 11 001 3012
制造商名称	HARTING Technology Group
Brand	Han® HC Modular
使用规范	IEC 60664-1
Conductor connection method	crimp connection
Insertion cycles, min.	500
Manufacturer product description	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A, Conductor cross-section: 70 ... 240 mm²
Manufacturer product designation	Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌650 A
污染度	3
通过认证	0
易燃等级	V0
移动最大导体横截面	240 mm²
移动最小导体横截面	70 mm²
额定电压	4000 V

ETIM 10.0

EC000438 Contact insert for rectangular connectors

Rated surge voltage	18 kV
Contact type	Pin
Contact insert without contacts	Yes
Connectable conductor cross section multi-wired	240 mm²
With wire protection	No
With protective conductor	No
Operating temperature	-40 °C
Rated current In	650 A
Material connector insert	Thermoplast
Type of electric connection	crimp connection
Min. number of insertion cycles	500
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	240 mm²
Rated voltage	4000 V

ETIM 9.0

EC000438 Contact insert for rectangular connectors

Rated surge voltage	18 kV
Contact type	Pin
Contact insert without contacts	Yes
Connectable conductor cross section multi-wired	240 mm²
With wire protection	No
With protective conductor	No
Operating temperature	-40 °C
Rated current In	650 A
Material connector insert	Thermoplast
Type of electric connection	crimp connection
Min. number of insertion cycles	500
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	240 mm²
Rated voltage	4000 V

ETIM 8.0

EC000438 Contact insert for rectangular connectors
