Contact insert for industrial connectors

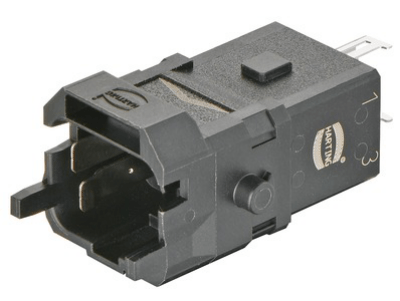

09100033001 - Han 1A-3+PE-C-m shielded, latch

HARTING

...

Connector component

Contact insert for industrial connectors

09100033001 - Han 1A-3+PE-C-m shielded, latch

HARTING 09100033001

Expand Table

主变量

次变量

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

INTNO

Alternative product number

SUPPLIERALTNO

Manufacturer Name

MANUNAME

Delivery Time

DELTIME

Rated surge voltage

AAB499 [kV]

09100033001

Han 1A-3+PE-C-m shielded, latch

Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding

Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches

5713140185487

09 10 003 3001

HARTING

显示压缩表示形式 (1 Produkt)

订购编码	09100033001
Shorttext	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding
Longtext	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches
上次修改	17.02.2025 13:38:18
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85366990
Description long	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches
Description short	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding
GTIN-Code	5713140185487
Order Number	09100033001

CNSPHYPROP Physical Properties

ECLASS 14.0

27-44-02-05 工业插头连接器接触部分

产品类型	Han 1A-3+PE-C-m shielded, latch
EAN代码	5713140185487
厂商产品编号	09 10 003 3001
制造商名称	HARTING Technology Group
品牌	Han® 1A
使用规范	EN 45545-2
尺寸	1 A
制造商产品说明	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches
制造商产品名称	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding
通过认证	0

ECLASS 13.0

27-44-02-05 工业插头连接器接触部分

额定浪涌电压	6
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	2.500
最小连接导体截面积（多股线）	0.140
有线路保护	No
有PE联接	Yes
最小工作温度	-30
最大工作温度	90
rated current	10
material connector of connector insert	Thermoplast
Product type	Han 1A-3+PE-C-m shielded, latch
EAN代码	5713140185487
厂商产品编号	09 10 003 3001
制造商名称	HARTING Technology Group
Brand	Han® 1A
使用规范	EN 45545-2
Conductor connection method	crimp connection
Size	1 A
Insertion cycles, min.	100
极数	3
Manufacturer product description	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches
Manufacturer product designation	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding
污染度	3
通过认证	0
绝缘材料的可燃性等级（根据UL 94)	V0
移动最大导体横截面	2.500
移动最小导体横截面	0.140
额定电压	400

ECLASS 12.0

27-44-02-05 工业插头连接插入物

customs tariff number (TARIC)	85366990
额定浪涌电压	6
触点设计	Pin
无触点的接触式插头	Yes
最大连接导体截面积（多股线）	2.500
最小连接导体截面积（多股线）	0.140
有线路保护	No
有PE联接	Yes
最小工作温度	-30
最大工作温度	90
rated current	10
material connector of connector insert	Thermoplast
Product type	Han 1A-3+PE-C-m shielded, latch
EAN代码	5713140185487
厂商产品编号	09 10 003 3001
制造商名称	HARTING Technology Group
Brand	Han® 1A
使用规范	EN 45545-2
Conductor connection method	crimp connection
Size	1 A
Insertion cycles, min.	100
极数	3
Manufacturer product description	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding, Conductor cross-section: 0.14 ... 2.5 mm², Snap-in latches
Manufacturer product designation	Inserts, Crimp termination, Male, Polyamide (PA), RAL 9005 (jet black), Rated current: ‌10 A, Size: 1 A, Contacts: 3 + shielding
污染度	3
通过认证	0
易燃等级	V0
移动最大导体横截面	2.500
移动最小导体横截面	0.140
额定电压	400

ETIM 10.0

EC000438 Contact insert for rectangular connectors

Rated surge voltage	6
Contact type	Pin
Contact insert without contacts	Yes
Connectable conductor cross section multi-wired	2.500
With wire protection	No
With protective conductor	Yes
Operating temperature	-30
Rated current In	10
Material connector insert	Thermoplast
Type of electric connection	crimp connection
Min. number of insertion cycles	100
Number of poles	3
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	2.500
Rated voltage	400

ETIM 9.0

EC000438 Contact insert for rectangular connectors

Rated surge voltage	6
Contact type	Pin
Contact insert without contacts	Yes
Connectable conductor cross section multi-wired	2.500
With wire protection	No
With protective conductor	Yes
Operating temperature	-30
Rated current In	10
Material connector insert	Thermoplast
Type of electric connection	crimp connection
Min. number of insertion cycles	100
Number of poles	3
Pollution degree	3
Inflammability class of insulation material according to with UL94	V0
Connectable conductor cross section fine-strand without cable end sleeve	2.500
Rated voltage	400

ETIM 8.0

EC000438 Contact insert for rectangular connectors
