Product number of the Manufacturer
MANUID
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Type Description
MANUTYPEDESC
Preview
PREVIEW
International product number
INTNO
BUYER_PID
Manufacturer Name
MANUNAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
031887
Timing relay, 1C/O, 400VAC, 50/60Hz, 0.05s-100h, multifunctional
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 0.05s-100h, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 400VAC, multi-functional, industry form factor

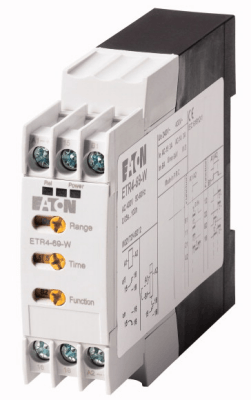

ETR4-69-W
04015080318873
031887
Eaton

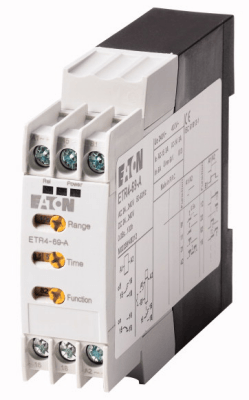

031891
Timing relay, 1C/O, 24-240VAC/DC, 50/60Hz, 0.05s-100h, multifunctional
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 0.05s-100h, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 24-240VAC/DC, multi-functional, industry form factor
ETR4-69-A
04015080318910
031891
Eaton

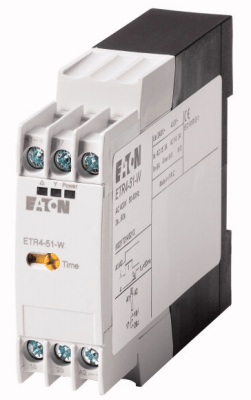

031885
Timing relay, 1C/O, 400VAC, 50/60Hz, 50ms, 3-60s, star-delta
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 3-60s, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 400VAC, star-delta switching, industry form factor
ETR4-51-W
04015080318859
031885
Eaton
031884
Timing relay, 1C/O, 24-240VAC/DC, 50ms, 3-60s, star-delta
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 3-60s, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 24-240VAC/DC, star-delta switching, industry form factor

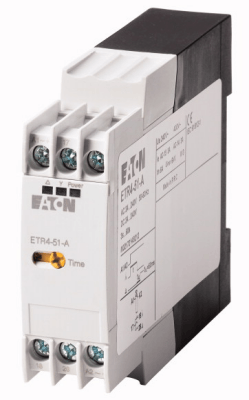

ETR4-51-A
04015080318842
031884
Eaton

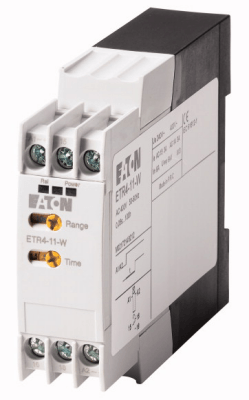

031883
Timing relay, 1C/O, 400VAC, 50/60Hz, 0.05s-60h, on-delayed
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 0.05s-100h, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 400VAC, on-delayed, industry form factor
ETR4-11-W
04015080318835
031883
Eaton

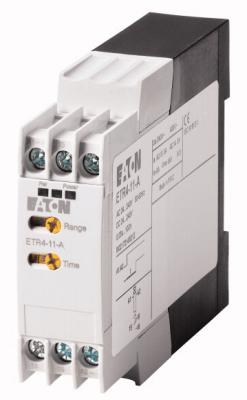

031882
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-240VDC, 0.05s-100h, on-delayed
Electronic timing relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, time range 0.05s-100h, mechanical lifespan 30 * 106, DIN top-hat rail mounting, any required mounting position, 24-240VAC/DC, on-delayed, industry form factor
ETR4-11-A
04015080318828
031882
Eaton
119428
Timing relay, 2C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, multifunctional
Electronic multi-function timing relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts adjustable, 11 on-delayed, 21 fleeting contact on energization, 42 flashing, pulse initiating, 43 flashing, pause initiating, 12 off-delayed, 22 fleeting contact on de-energization, 82 pulse shaping

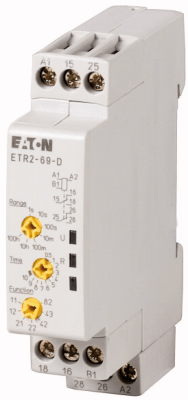

ETR2-69-D
04015081175741
119428
Eaton
262730
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, flashing, 2 Zeiten
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts flashing 2 times

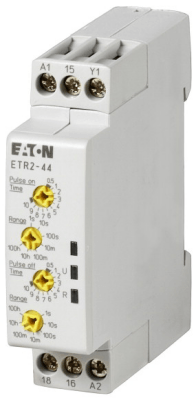

ETR2-44
04015082627300
262730
Eaton
262688
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, flashing
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts flashing

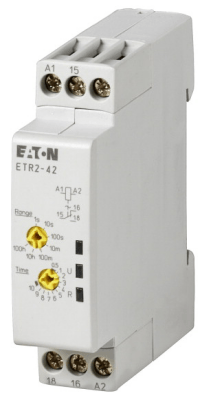

ETR2-42
04015082626884
262688
Eaton
262687
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, fleeting make contact
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts fleeting contact on energization

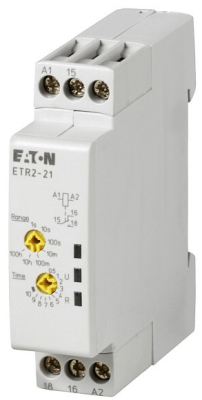

ETR2-21
04015082626877
262687
Eaton
119427
Timing relay, 2C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, off-delayed
Electronic timing relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts off-delayed, with 45mm cap dimension, suitable for mounting in service distribution board
ETR2-12-D
04015081175734
119427
Eaton
262686
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, off-delayed
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts off-delayed

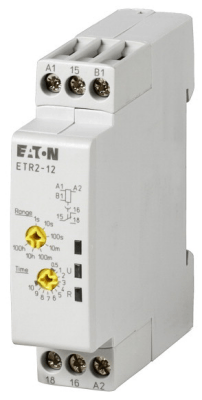

ETR2-12
04015082626860
262686
Eaton

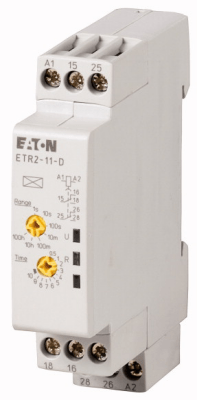

119426
Timing relay, 2C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, on-delayed
Electronic timing relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts on-delayed, with 45mm cap dimension, suitable for mounting in service distribution board
ETR2-11-D
04015081175727
119426
Eaton
262684
Timing relay, 1C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, on-delayed
ETR2 electronic timing relays, 17.5 mm wide, time range 0.05s-100h, 1 changeover contacts on-delayed

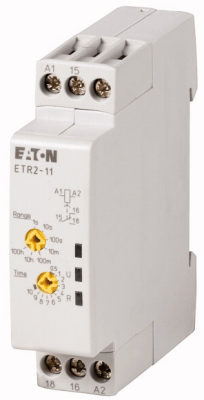

ETR2-11
04015082626846
262684
Eaton
Eaton eCAD - 05
| 订购编码 | 119428 |
| Shorttext | Timing relay, 2C/O, 24-240VAC, 50/60Hz, 24-48VDC, 0.05s-100h, multifunctional |
| Longtext | Electronic multi-function timing relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts adjustable, 11 on-delayed, 21 fleeting contact on energization, 42 flashing, pulse initiating, 43 flashing, pause initiating, 12 off-delayed, 22 fleeting contact on de-energization, 82 pulse shaping |
| 上次修改 | 14.10.2024 10:27:11 |
