Eaton eCAD
Electric engineering, automation, process control engineering
Transformer, converter, coil
Control transformer
02 - One-phase control transformer
Eaton eCAD
Transformer, converter, coil
Control transformer
02 - One-phase control transformer
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

204936

Expand Table
1/5
Product number of the Manufacturer
MANUID
Short Description
DESCSHORT
Long Description
DESCLONG
Manufacturer Type Description
MANUTYPEDESC
Preview
PREVIEW
International product number
INTNO
BUYER_PID
Manufacturer Name
MANUNAME
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
204938
Control transformer, 60VA, 1p, special voltage
Single-phase control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED, rated input voltage selectable of 100-690V +-5%, rated output voltage can be selected from 12 - 250 rated power 0.06 kVA (*/*) = wildcard for rated input voltage / rated output voltage
STN0,06(*/*)
-
204938
Eaton
204943
Control transformer, 100VA, 1p, primary 400V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,1(400/24)
04015082049430
204943
Eaton
204942
Control transformer, 100VA, 1p, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,1(400/230)
04015082049423
204942
Eaton
035259
Control transformer, 2.5kVA, 1p, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI2,5(400/230)
04015080352594
035259
Eaton
204941
Control transformer, 100VA, 1p, primary 230V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,1(230/24)
04015082049416
204941
Eaton
036399
Control transformer, 2.5kVA, 1p, primary 230V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI2,5(230/230)
04015080363996
036399
Eaton
204940
Control transformer, 100VA, 1p, primary 230V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,1(230/230)
04015082049409
204940
Eaton
204939
Control transformer, 100VA, 1p, special voltage
Single-phase control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED, rated input voltage selectable of 100-690V +-5%, rated output voltage can be selected from 12 - 250 rated power 0.1 kVA (*/*) = wildcard for rated input voltage / rated output voltage
STN0,1(*/*)
-
204939
Eaton
035258
Control transformer, 2.0kVA, 1p, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI2,0(400/230)
04015080352587
035258
Eaton
204937
Control transformer, 60VA, 1p, primary 400V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,06(400/24)
04015082049379
204937
Eaton
204936
Control transformer, 60VA, 1p, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,06(400/230)
04015082049362
204936
Eaton
204935
Control transformer, 60VA, 1p, primary 230V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
STN0,06(230/24)
04015082049355
204935
Eaton
036398
Control transformer, 2.0kVA, 1p, primary 230V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI2,0(230/230)
04015080363989
036398
Eaton
046952
Control transformer, 1.6kVA, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI1,6(400/230)
04015080469520
046952
Eaton
035257
Control transformer, 1.6kVA, 1p, primary 230V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI1,6(230/230)
04015080352570
035257
Eaton
046918
Control transformer, 1.3kVA, 1p, primary 400V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI1,3(400/230)
04015080469186
046918
Eaton
035256
Control transformer, 1.3kVA, 1p, primary 230V, secondary 230V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI1,3(230/230)
04015080352563
035256
Eaton
035255
Control transformer, 1.0kVA, 1p, primary 400V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI1,0(400/24)
04015080352556
035255
Eaton
036395
Control transformer, 630VA, 1p, primary 230V, secondary 24V
Control transformer built according to IEC/EN 61558-2-2, VDE 0570 part 1 and part 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, tappings +- 5%, degree of protection IP00, 100% duty factor can be used as safety or isolating transformer
STI0,63(230/24)
04015080363958
036395
Eaton
显示压缩表示形式 (99 Produkt)
零部件信息
相似件
Request for quote (RFQ)

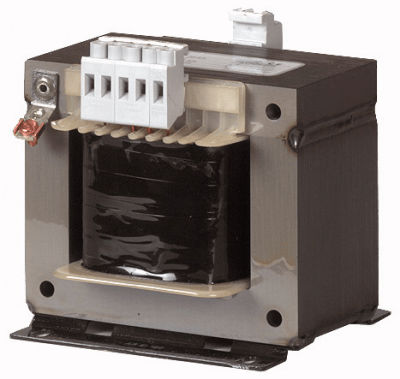

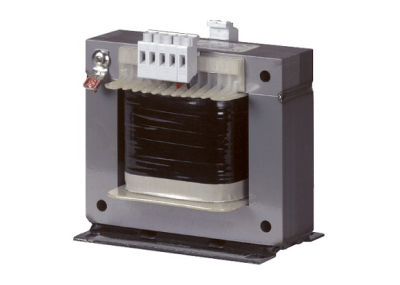

Eaton eCAD - 02
订购编码204936
ShorttextControl transformer, 60VA, 1p, primary 400V, secondary 230V
LongtextControl transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
上次修改14.10.2024 10:24:50
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Description longControl transformer built according to IEC/EN 61558-2-2, VDE 0570 Part 2-2, UL 506, CSA 22.2 No.66, tappings +- 5%, degree of protection IP00, 100% ED
Description shortControl transformer, 60VA, 1p, primary 400V, secondary 230V
GTIN-Code04015082049362
Order Number204936

ECLASS 14.0

27-03-13-02 单相空气心变压器
产品类型STN0,06(400/230)
EAN代码04015082049362
厂商产品编号204936
制造商名称Eaton
供货商名称Eaton
商品编号204936
附加链接地址https://datasheet.eaton.com/datasheet.php?model=204936&locale=en_GB
制造商产品系列STN
制造商产品根LV Transformer
制造商产品名称Control transformer, 60VA, 1p, primary 400V, secondary 230V
损耗功率17.0 W
通过认证CE

ECLASS 13.0

27-03-13-02 单相空气心变压器
设计作为安全变压器false
设计作为补偿变压器false
设计作为绝缘变压器false
适用于电路板安装false
绝缘材料类别（依据IEC 85）WPA213
最大主电压（1级）400.0 V
最大主电压（10级）0.0 V
最大主电压（2级）0.0 V
最大主电压（3级）0.0 V
最大主电压（4级）0.0 V
最大主电压（5级）0.0 V
最大主电压（6级）0.0 V
最大主电压（7级）0.0 V
最大主电压（8级）0.0 V
最大主电压（9级）0.0 V
最大辅电压（1级）230.0 V
最大辅电压（10级）0.0 V
最大辅电压（2级）0.0 V
最大辅电压（3级）0.0 V
最大辅电压（4级）0.0 V
最大辅电压（5级）0.0 V
最大辅电压（6级）0.0 V
最大辅电压（7级）0.0 V
最大辅电压（8级）0.0 V
最大辅电压（9级）0.0 V
最小主电压（1级）400.0 V
最小主电压（10级）0.0 V
最小主电压（2级）0.0 V
最小主电压（3级）0.0 V
最小主电压（4级）0.0 V
最小主电压（5级）0.0 V
最小主电压（6级）0.0 V
最小主电压（7级）0.0 V
最小主电压（8级）0.0 V
最小主电压（9级）0.0 V
最小辅电压（1级）230.0 V
最小辅电压（10级）0.0 V
最小辅电压（2级）0.0 V
最小辅电压（3级）0.0 V
最小辅电压（4级）0.0 V
最小辅电压（5级）0.0 V
最小辅电压（6级）0.0 V
最小辅电压（7级）0.0 V
最小辅电压（8级）0.0 V
最小辅电压（9级）0.0 V
相对短路电压Uk11.0 %
环状磁芯false
额定性能60.0 V·A
Product typeSTN0,06(400/230)
EAN代码04015082049362
厂商产品编号204936
制造商名称Eaton
供货商名称Eaton
商品编号204936
address of additional linkhttps://datasheet.eaton.com/datasheet.php?model=204936&locale=en_GB
Manufacturer product familySTN
Manufacturer product rootLV Transformer
Manufacturer product designationControl transformer, 60VA, 1p, primary 400V, secondary 230V
高度84.0 mm
损耗功率17.0 W
通过认证CE
深度83.0 mm
适用于系列安装false
耐短路的false
宽度66.0 mm
保护方式IPIP00

ECLASS 12.0

27-03-13-02 单相空气心变压器
设计作为安全变压器false
设计作为补偿变压器false
设计作为绝缘变压器false
适用于电路板安装false
绝缘材料类别（依据IEC 85）WPA213
最大主电压（1级）400.0 V
最大主电压（10级）0.0 V
最大主电压（2级）0.0 V
最大主电压（3级）0.0 V
最大主电压（4级）0.0 V
最大主电压（5级）0.0 V
最大主电压（6级）0.0 V
最大主电压（7级）0.0 V
最大主电压（8级）0.0 V
最大主电压（9级）0.0 V
最大辅电压（1级）230.0 V
最大辅电压（10级）0.0 V
最大辅电压（2级）0.0 V
最大辅电压（3级）0.0 V
最大辅电压（4级）0.0 V
最大辅电压（5级）0.0 V
最大辅电压（6级）0.0 V
最大辅电压（7级）0.0 V
最大辅电压（8级）0.0 V
最大辅电压（9级）0.0 V
最小主电压（1级）400.0 V
最小主电压（10级）0.0 V
最小主电压（2级）0.0 V
最小主电压（3级）0.0 V
最小主电压（4级）0.0 V
最小主电压（5级）0.0 V
最小主电压（6级）0.0 V
最小主电压（7级）0.0 V
最小主电压（8级）0.0 V
最小主电压（9级）0.0 V
最小辅电压（1级）230.0 V
最小辅电压（10级）0.0 V
最小辅电压（2级）0.0 V
最小辅电压（3级）0.0 V
最小辅电压（4级）0.0 V
最小辅电压（5级）0.0 V
最小辅电压（6级）0.0 V
最小辅电压（7级）0.0 V
最小辅电压（8级）0.0 V
最小辅电压（9级）0.0 V
相对短路电压Uk11.0 %
环状磁芯false
额定性能60.0 V·A
customs tariff number (TARIC)85043180
Product typeSTN0,06(400/230)
EAN代码04015082049362
厂商产品编号204936
制造商名称Eaton
供货商名称Eaton
商品编号204936
address of additional linkhttps://datasheet.eaton.com/datasheet.php?model=204936&locale=en_GB
Manufacturer product familySTN
Manufacturer product rootLV Transformer
Manufacturer product designationControl transformer, 60VA, 1p, primary 400V, secondary 230V
高度84.0 mm
损耗功率17.0 W
通过认证CE
深度83.0 mm
适用于系列安装false
耐短路的false
宽度66.0 mm
保护方式IPIP00

ETIM 10.0

EC002486 One-phase control transformer
Built as safety transformerfalse
Built as energy saving transformerfalse
Built as isolating transformerfalse
Suitable for mounting on PCBfalse
Type of insulation material according to IEC 85WPA213
Primary voltage 1400.0 V
Primary voltage 100.0 V
Primary voltage 20.0 V
Primary voltage 30.0 V
Primary voltage 40.0 V
Primary voltage 50.0 V
Primary voltage 60.0 V
Primary voltage 70.0 V
Primary voltage 80.0 V
Primary voltage 90.0 V
Secondary voltage 1230.0 V
Secondary voltage 100.0 V
Secondary voltage 20.0 V
Secondary voltage 30.0 V
Secondary voltage 40.0 V
Secondary voltage 50.0 V
Secondary voltage 60.0 V
Secondary voltage 70.0 V
Secondary voltage 80.0 V
Secondary voltage 90.0 V
Relative short circuit voltage11.0 %
Ring corefalse
Rated apparent power60.0 V·A
Height84.0 mm
Depth83.0 mm
Modular versionfalse
Short-circuit-prooffalse
Width66.0 mm
Degree of protection (IP)IP00

ETIM 9.0

EC002486 One-phase control transformer
Built as safety transformerfalse
Built as energy saving transformerfalse
Built as isolating transformerfalse
Suitable for mounting on PCBfalse
Type of insulation material according to IEC 85WPA213
Primary voltage 1400.0 V
Primary voltage 100.0 V
Primary voltage 20.0 V
Primary voltage 30.0 V
Primary voltage 40.0 V
Primary voltage 50.0 V
Primary voltage 60.0 V
Primary voltage 70.0 V
Primary voltage 80.0 V
Primary voltage 90.0 V
Secondary voltage 1230.0 V
Secondary voltage 100.0 V
Secondary voltage 20.0 V
Secondary voltage 30.0 V
Secondary voltage 40.0 V
Secondary voltage 50.0 V
Secondary voltage 60.0 V
Secondary voltage 70.0 V
Secondary voltage 80.0 V
Secondary voltage 90.0 V
Relative short circuit voltage11.0 %
Ring corefalse
Rated apparent power60.0 V·A
Height84.0 mm
Depth83.0 mm
Modular versionfalse
Short-circuit-prooffalse
Width66.0 mm
Degree of protection (IP)IP00

ETIM 8.0

EC002486 One-phase control transformer
