SCHNEEBERGER CAD产品目录
Schneeberger offers precision components, including linear guide rails, slides and miniature tables, measurement systems, gear, racks, and ball screws for various industries. Download free CAD models of Schneeberger’s products on 3Dfindit.
目录过滤器
Precision Components by Schneeberger – Now Available as CAD Models

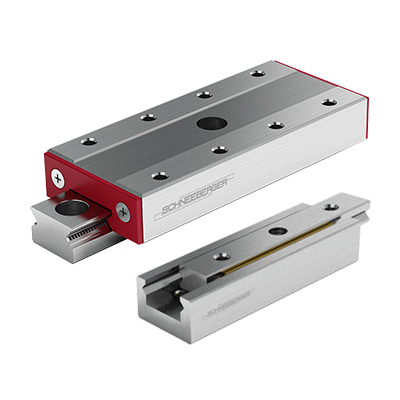

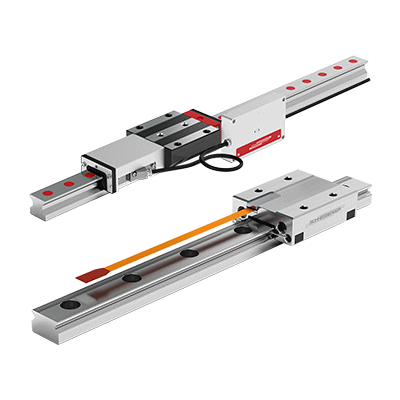

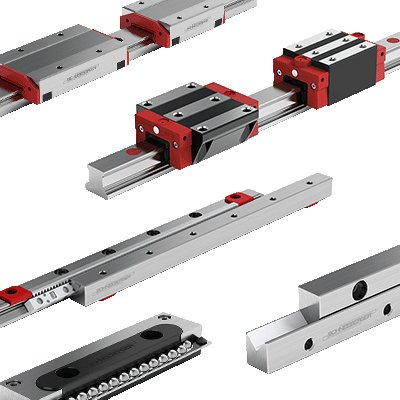

Schneeberger provides high-precision linear guide rails, slides and miniature tables, measurement systems, gear racks, and ball screws for industries like automation, robotics, and medical technology. These components are engineered for superior accuracy and durability, ensuring high performance in demanding applications.
On 3Dfindit, you can download detailed CAD models of Schneeberger’s precision components to easily integrate them into your designs and projects.
With over 6,500 catalogs available on 3Dfindit, explore Schneeberger’s full range of linear technology solutions and download all available CAD models for free to support your engineering and design needs.
分支机构：
Shanghai
SCHNEEBERGER (Shanghai) Co., Ltd.
Rm 606, Sheng Gao International Building, No. 137 XianXia Road
+86 21 62090027/37
+86 21 62090102
