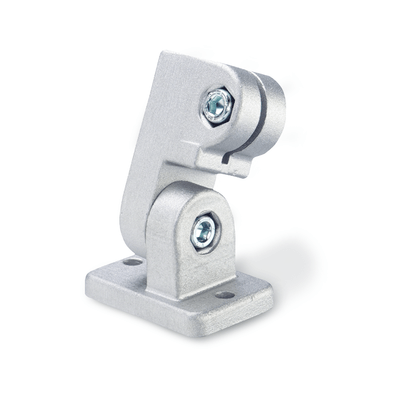

Swivel Clamp Connector Joint GN 281-B15-2-SW
1/5
E+G PARTNUMBER
PARTNUMBER
Bore
D1 [mm]
Swivel width
B [mm]
D2 [mm]
K [mm]
L1 [mm]
L2 [mm]
M1 [mm]
M2 [mm]
T [mm]
X1 [mm]
X2 [mm]
Y [mm]
Screw locations
Z1
Screw locations
Z2
Clamping lever for Z1
L3Z1 [mm]
Clamping lever for Z2
L3Z2 [mm]
Finish
OBVIS
Weight
WEIGHT [kg]
Customs Tariff Number
CTN
ROHS
Product details
INFOEG
1
2
3
4
5
6
7
8
9
10
GN 281-B12-2-SW
B12
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
63
45 | 63
blank
0.1260
76090000
YES
Product details
GN 281-B12-2-BL
B12
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
63
45 | 63
black
0.1260
76090000
YES
Product details
GN 281-B14-2-SW
B14
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
blank
0.1220
76090000
YES
Product details
GN 281-B14-2-BL
B14
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
black
0.1220
76090000
YES
Product details
GN 281-B15-2-SW
B15
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
blank
0.1140
76090000
YES
Product details
GN 281-B15-2-BL
B15
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
black
0.1140
76090000
YES
Product details
GN 281-B16-2-SW
B16
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
blank
0.1120
76090000
YES
Product details
GN 281-B16-2-BL
B16
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
black
0.1120
76090000
YES
Product details
GN 281-B18-2-SW
B18
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
blank
0.1000
76090000
YES
Product details
GN 281-B18-2-BL
B18
25
5.5
31.5
72.5
34.5
24
48.5
7
50
38
35
M6-20
M6-20
45 | 63
45 | 63
black
0.1000
76090000
YES
Product details
| 标准代码 | GN 281 |
| 描述 | Swivel Clamp Connector Joints, Aluminum, with screw, Stainless steel |
| 公司 | Elesa+Ganter |
| 上次修改 | 31.03.2025 15:20:42 |
| 单位 |
GN 281,Swivel Clamp Connector Joints, Aluminum, with screw, Stainless steel,Elesa+Ganter
