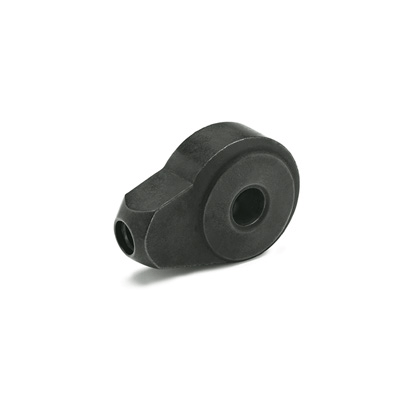

ELESA-Hubs with eccentric cams GN 919-24-B8
1/5
Code
CODE
Description
DESCRIPTION
d1
DIM01 [mm]
d2H9
DIM02 [mm]
b1 -0.05/-0.15
DIM03 [mm]
b2
DIM04 [mm]
d3
DIM05
d4
DIM06 [mm]
l
DIM07 [mm]
r1
DIM08 [mm]
r2
DIM09 [mm]
r3
DIM10 [mm]
r4
DIM11 [mm]
s
DIM12 [mm]
tmin
DIM13 [mm]
Weight
WEIGHT [g]
1
2
3
GN.31861
GN 919-24-B8
24
8
13
11
M6
8
28
12.0
13.32
14.64
15.30
3.3
9
59
GN.31871
GN 919-30-B10
30
10
15
13
M8
10
32
15.0
16.65
18.30
19.12
4.1
12
100
GN.31881
GN 919-35-B12
35
12
17
15
M10
12
36
17.5
19.42
21.34
22.31
4.8
15
150
| 标准代码 | GN 919 |
| 描述 | ELESA-Hubs with eccentric cams |
| 公司 | Elesa |
| 上次修改 | 21.05.2025 15:51:32 |
| 单位 |
