SIEMENS
Electric engineering, automation, process control engineering
Low-voltage switch technology
Monitoring equipment (low-voltage switch technology)
Speed-/standstill monitoring relay
SIEMENS
Low-voltage switch technology
Monitoring equipment (low-voltage switch technology)
Speed-/standstill monitoring relay
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

3UG48511AA40

Expand Table
EN
1/5
Product number of the Manufacturer
MANUID
Alternative product number
SUPPLIERALTNO
Short Description
DESCSHORT
Long Description
DESCLONG
EAN
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
min. rated control voltage Us with DC
AAB960 [V]
Performance level acc. to EN ISO 13849-1
AAC073
1
2
3UG48511AA40
3UG4851-1AA40

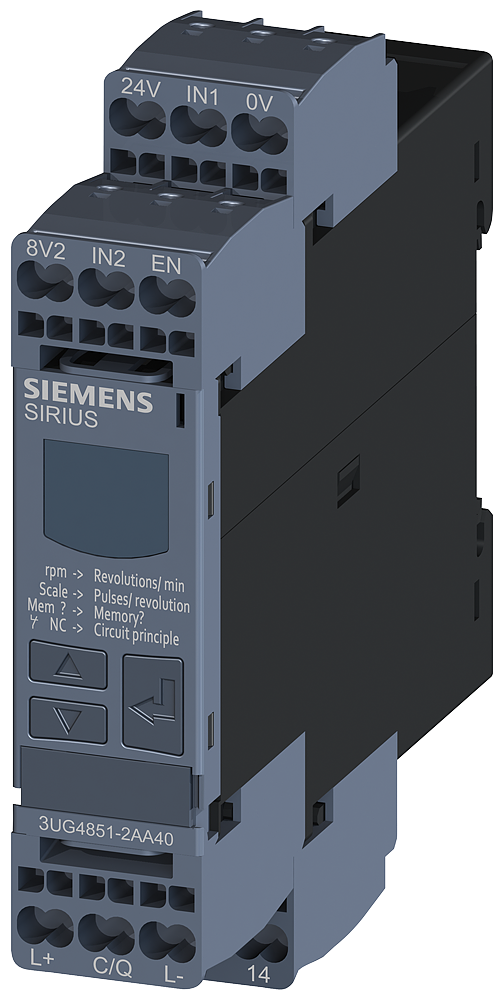

Monitoring relay, digital, speed monitoring for IO-Link from 0.1 to 2200 rpm
Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 99 rpm 1 change-over contact, screw terminal
4011209895904
Siemens
Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm
24
Without
3UG48512AA40
3UG4851-2AA40
Monitoring relay, digital, speed monitoring for IO-Link from 0.1 to 2200 rpm
Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 99 rpm 1 change-over contact, spring-type connection system
4011209895911
Siemens
Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm
24
Without
显示压缩表示形式 (2 Produkt)
相似件
零部件信息
Price Trend Risk
标准代码Speed-/standstill monitoring relay
描述
公司SIEMENS
上次修改04.05.2022 06:30:43
单位
关键字
Speed-/standstill monitoring relay,,SIEMENS

CNS

CNSERPBASE Object Properties
Order Number3UG48511AA40

ECLASS 14.0

27-37-18-11 停止监测设备

ECLASS 13.0

27-37-18-11 停止监测设备

ECLASS 12.0

27-37-18-11 停止监测设备

ECLASS 11.1

27-37-18-11 停止监测设备

ECLASS 11.0

27-37-18-11 停止监测设备
最小额定控制电压Us（直流）24
性能等级（依据EN ISO 13849-1)Without
功能-转速监控true
触点数（安全相关，有延迟，带触点）0
具有发信号功能（带触点）的延时输出的数量1
具有发信号功能的延时半导体输出数量0
输出数（安全相关，有延迟，半导体）0
输出数（安全相关，无延迟，半导体）0
输出数（安全相关，无延迟，有触点）0
具有发信号功能的无延时半导体输出数量0
高度91.0
深度102.0
操纵方法DC
反馈循环false
可拆端子true
BG BIA许可0
TÜV颁发的许可0
UL许可0
适用于安全功能false
电路连接说明Screw connection
宽度23.0
可以静止监测false

ECLASS 10.1

27-37-18-11 停止监测设备
功能-转速监控true
触点数（安全相关，有延迟，带触点）0
具有发信号功能（带触点）的延时输出的数量1
具有发信号功能的延时半导体输出数量0
输出数（安全相关，有延迟，半导体）0
输出数（安全相关，无延迟，半导体）0
输出数（安全相关，无延迟，有触点）0
具有发信号功能的无延时半导体输出数量0
操纵方法DC
反馈循环false
可拆端子true
BG BIA许可0
TÜV颁发的许可0
UL许可0
适用于安全功能false
电路连接说明Screw connection
可以静止监测false

ECLASS 10.0.1

27-37-18-11 停止监测设备
功能-转速监控true
触点数（安全相关，有延迟，带触点）0
具有发信号功能（带触点）的延时输出的数量1
具有发信号功能的延时半导体输出数量0
输出数（安全相关，有延迟，半导体）0
输出数（安全相关，无延迟，半导体）0
输出数（安全相关，无延迟，有触点）0
具有发信号功能的无延时半导体输出数量0
操纵方法DC
反馈循环false
可拆端子true
BG BIA许可0
TÜV颁发的许可0
UL许可0
适用于安全功能false
电路连接说明Screw connection
可以静止监测false

ECLASS 9.1

27-37-18-11 停止监测设备
最小额定控制电压Us（直流）24
性能等级（依据EN ISO 13849-1)Without
功能-转速监控true
触点数（安全相关，有延迟，带触点）0
具有发信号功能（带触点）的延时输出的数量1
具有发信号功能的延时半导体输出数量0
输出数（安全相关，有延迟，半导体）0
输出数（安全相关，无延迟，半导体）0
输出数（安全相关，无延迟，有触点）0
具有发信号功能的无延时半导体输出数量0
高度91.0
深度102.0
操纵方法DC
反馈循环false
可拆端子true
BG BIA许可0
TÜV颁发的许可0
UL许可0
适用于安全功能false
电路连接说明Screw connection
宽度23.0
最大DC测量控制供电电压24
可以静止监测false

ETIM 9.0

EC001448 Speed-/standstill monitoring relay
Rated control supply voltage Us at DC24
Performance level according to EN ISO 13849-1Without
Function rotational speed monitoringtrue
Number of outputs, safety related, delayed, with contact0
Number of outputs, signalling function, delayed, with contact1
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, undelayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Height91.0
Depth102.0
Voltage type for actuatingDC
With feedback circuitfalse
With detachable clampstrue
With approval for BG BIA0
With approval for TÜV0
With approval according to UL0
Suitable for safety functionsfalse
Type of electric connectionScrew connection
Width23.0
Function standstill monitoringfalse

ETIM 8.0

EC001448 Speed-/standstill monitoring relay
Rated control supply voltage Us at DC24
Performance level according to EN ISO 13849-1Without
Function rotational speed monitoringtrue
Number of outputs, safety related, delayed, with contact0
Number of outputs, signalling function, delayed, with contact1
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, undelayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Height91.0
Depth102.0
Voltage type for actuatingDC
With feedback circuitfalse
With detachable clampstrue
With approval for BG BIA0
With approval for TÜV0
With approval according to UL0
Suitable for safety functionsfalse
Type of electric connectionScrew connection
Width23.0
Function standstill monitoringfalse

ETIM 7.0

EC001448 Speed-/standstill monitoring relay
Rated control supply voltage Us at DC24
Performance level acc. EN ISO 13849-1Without
Function rotational speed monitoringtrue
Number of outputs, safety related, delayed, with contact0
Number of outputs, signalling function, delayed, with contact1
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, undelayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Height91.0
Depth102.0
Voltage type for actuatingDC
With feedback circuitfalse
With detachable clampstrue
With approval for BG BIA0
With approval for T�?V0
With approval according to UL0
Suitable for safety functionsfalse
Type of electric connectionScrew connection
Width23.0
Function standstill monitoringfalse
