0024.20.050
1/5
Company/ Manufacturer
MRF
Product image
PRODUKTBILD
Article number
CNSORDERNO
GTIN
GTIN
Article description
BEZ
Component type
BTYP
Level of Detail
LODLEVEL
Nominal size
NM
Total length L1
L1 [mm]
Length housing L2
L2 [mm]
Connection thread A
A
Height from center of connection thread to bottom edge H1
H1 [mm]
Height from centre of connection thread to upper edge H2
H2 [mm]
Total height H3
H3 [mm]
Diameter of drain funnel D1
D1 [mm]
Durchmesser Wärmedämmschalen D2
D2 [mm]
1
2
3
Hans Sasserath GmbH & Co. KG
0024.20.050
4017905237369

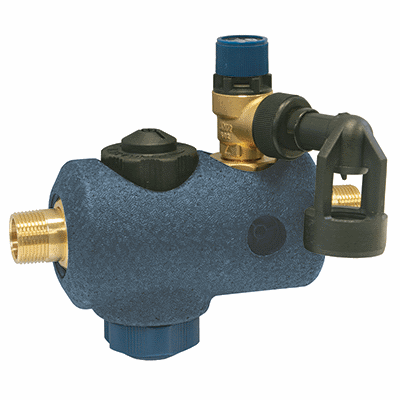

SYR safety group SYRobloc Plus 24 - DN 20
24.2
300
DN 20
182
120
R 3/4"
70.7
94.7
165.4
40
75
Hans Sasserath GmbH & Co. KG
0024.20.051
4017905237376
SYR safety group SYRobloc Plus 24 - DN 20
24.2
300
DN 20
182
120
R 3/4"
70.7
94.7
165.4
40
75
Hans Sasserath GmbH & Co. KG
0024.20.052
4017905237383
SYR safety group SYRobloc Plus 24 - DN 20
24.2
300
DN 20
182
120
R 3/4"
70.7
94.7
165.4
40
75
ETIM 9.0 - SYR safety group SYRobloc Plus 24
