BPZ:331-3060

Low

NO.3 PNEU.ACT.8-13PSI EXT SHEFT

331-4811

without display

http://www.siemens.com/btproduct?BPZ:331-4811

https://sieportal.siemens.com/en-ww/support

http://www.siemens.com/buildingtechnologies

4034110000000

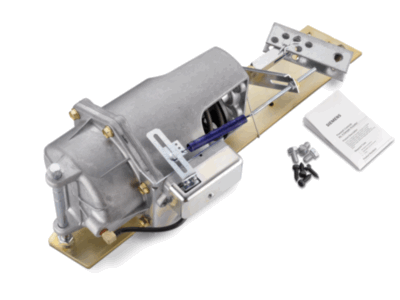

"This 331 Number 3 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC dampers. This actuator has a nominal spring range of 8 to 13 psi, has extended shaft mounting and an ozone-resistant rolling rubber diaphragm. This actuator has an air connection of 1/8"" NPT internal threads with a straight dual barb fitting for 1/4"" OD tubing."

Low

NO.4 PNEU ACTUATOR,8-13PSI, U-M

331-2973

without display

http://www.siemens.com/btproduct?BPZ:331-2973

https://sieportal.siemens.com/en-ww/support

http://www.siemens.com/buildingtechnologies

4034110000000

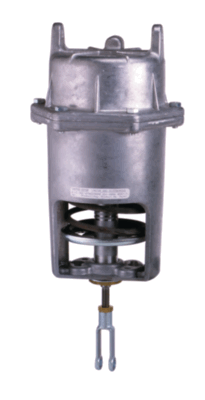

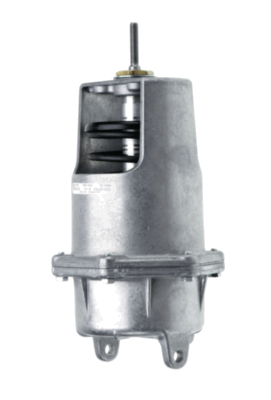

"This 331 Number 4 Pneumatic Damper Actuator with integral pivot and pivot post is UL recognized for fire and smoke applications and is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 8 to 13 psi, a replaceable diaphragm and an air connection of 1/8"" NPT internal threads with a dual barb elbow fitting for 1/4"" OD tubing. Also included is an universal mounting kit that allows fixed or pivot mounting, this kit contains parts for frame mounting."

Low

NO.6 PNEU ACTUATOR,8-13PSI,P-M

331-2856

without display

http://www.siemens.com/btproduct?BPZ:331-2856

https://sieportal.siemens.com/en-ww/support

http://www.siemens.com/buildingtechnologies

4034110000000

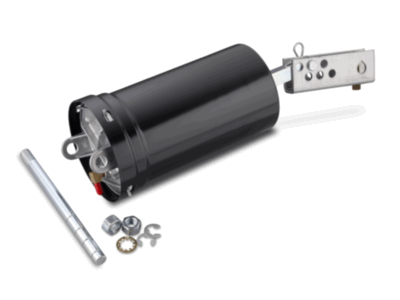

"This 331 Number 6 Pneumatic Damper Actuator is a rugged, metal-fabricated device that is UL recognized for use on fire dampers and leakage-rated dampers. This actuator has a nominal spring range of 8 to 13 psi, is pivot mounted and has a replaceable diaphragm. This actuator has a 1/8"" NPT internal threads air connection."
